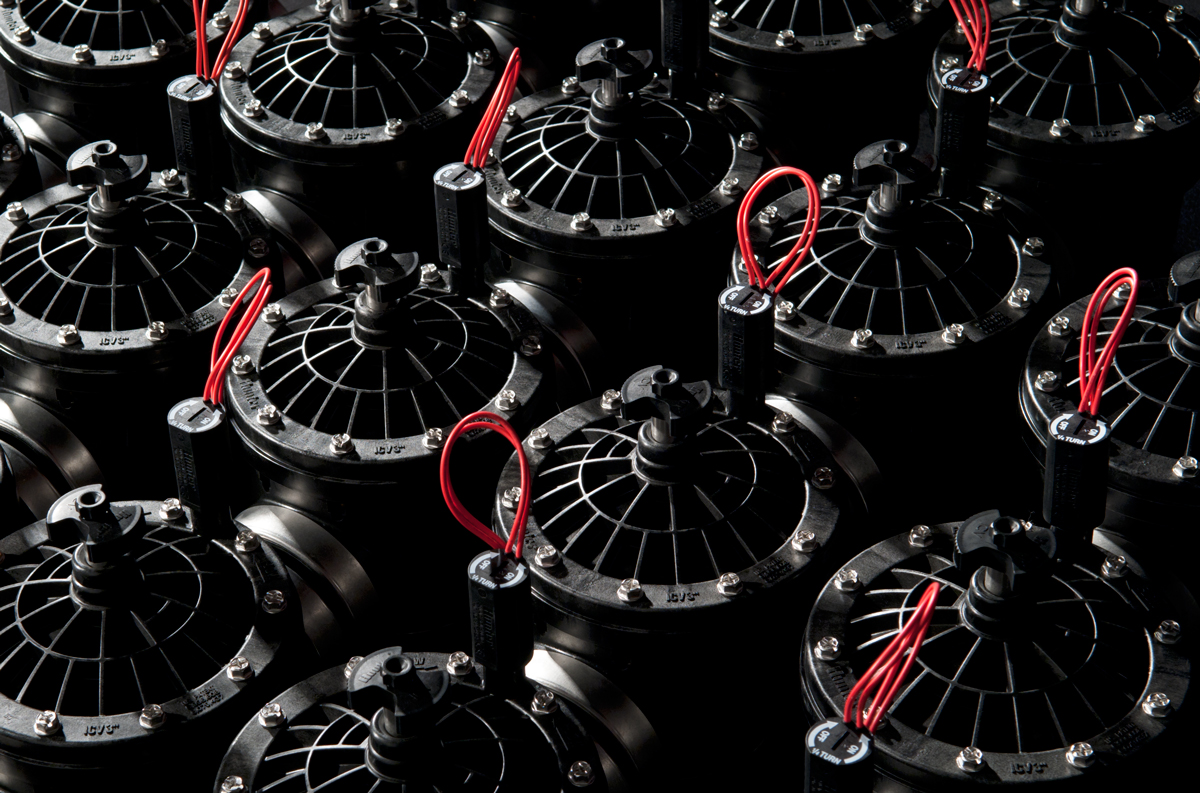

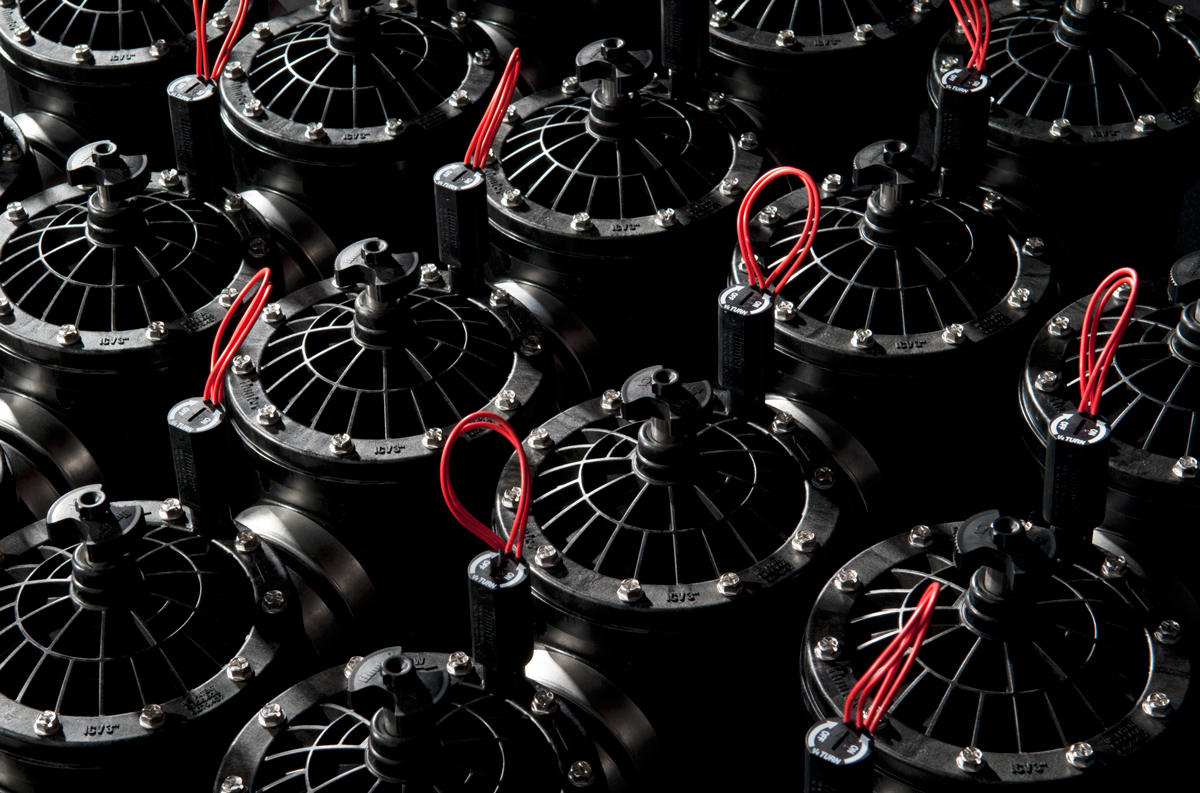

Electrovalve ICV 3

Description

FEATURES

• Application : Commercial/Municipal
• External and internal manual bleed allows quick and easy "at the valve" activation
• Glass-filled nylon construction results in the highest pressure rating
• Double-beaded diaphragm seal design for superior leak-free performance
• Fabric-reinforced EPDM diaphragm and EPDM seat ensure superior performance in all water conditions
• DC latching solenoids enable Hunter's battery-powered controllers
• Captive bonnet bolts provide hassle-free valve maintenance
• Low flow capability allows for use with Hunter's irrigation products
• Encapsulated 24VAC solenoid with captive plunger for hassle-free service
• Temperature rating : 66^oC

OPERATING SPECIFICATIONS

Flow rate : 34 to 68mc/h; 560 to 1135l/min

Recommended pressure range : 1.5 to 15bar; 150 to 1500kPa

SOLENOID SPECIFICATION

24VAC, 370mA inrush, 190mA holding, 50Hz

DIMENSIONS

27.3cm H x 23.5cm L x 18.7cm W
