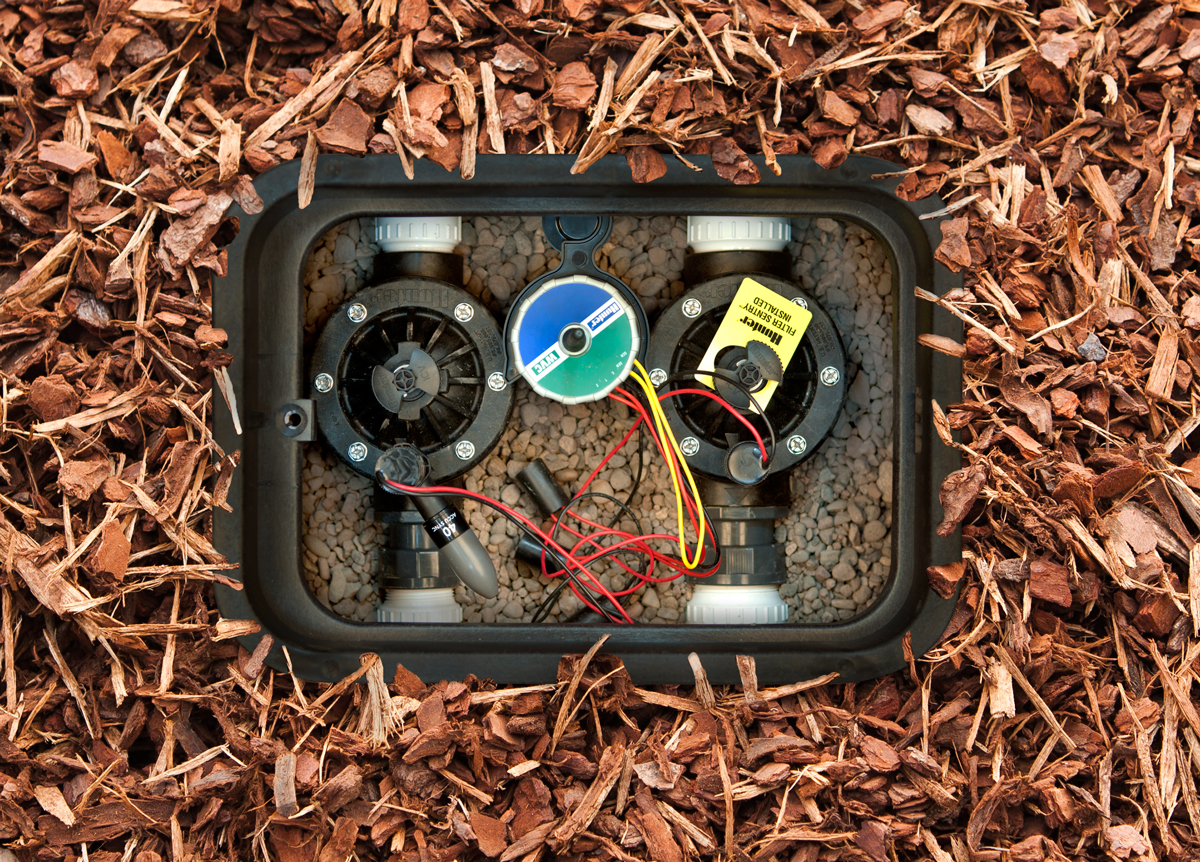

Electrovalve ICV 11/2

Description

FEATURES

• Application: Commercial/municipal

• External and internal manual bleed allows quick and easy “at the valve” activation

• Glass-filled nylon construction results in the highest pressure rating

• Double-beaded diaphragm seal design for superior leak-free performance

• Fabric reinforced EPDM diaphragm and EPDM seat ensure superior performance in all water conditions

• DC latching solenoids enable Hunter’s battery-powered controllers

• Captive bonnet bolts provide hassle-free valve maintenance

• Low flow capability allows for use with Hunter's micro irrigation products

• Encapsulated 24 VAC solenoid with captive plunger for hassle-free service

Temperature rating: 66° C

OPERATING SPECIFICATIONS

• Flow rate:
  • ICV-151G: 17 to 31 mc/h; 75 to 510l/min
• Recommended pressure range: 1.5 to 15.0bar; 150 to 1500kPa

SOLENOID SPECIFICATIONS

• 24 VAC solenoid
  • 370 mA inrush, 210 mA holding, 50 cycles

DIMENSIONS

18cm H x 17.5cm L x 14cm W
