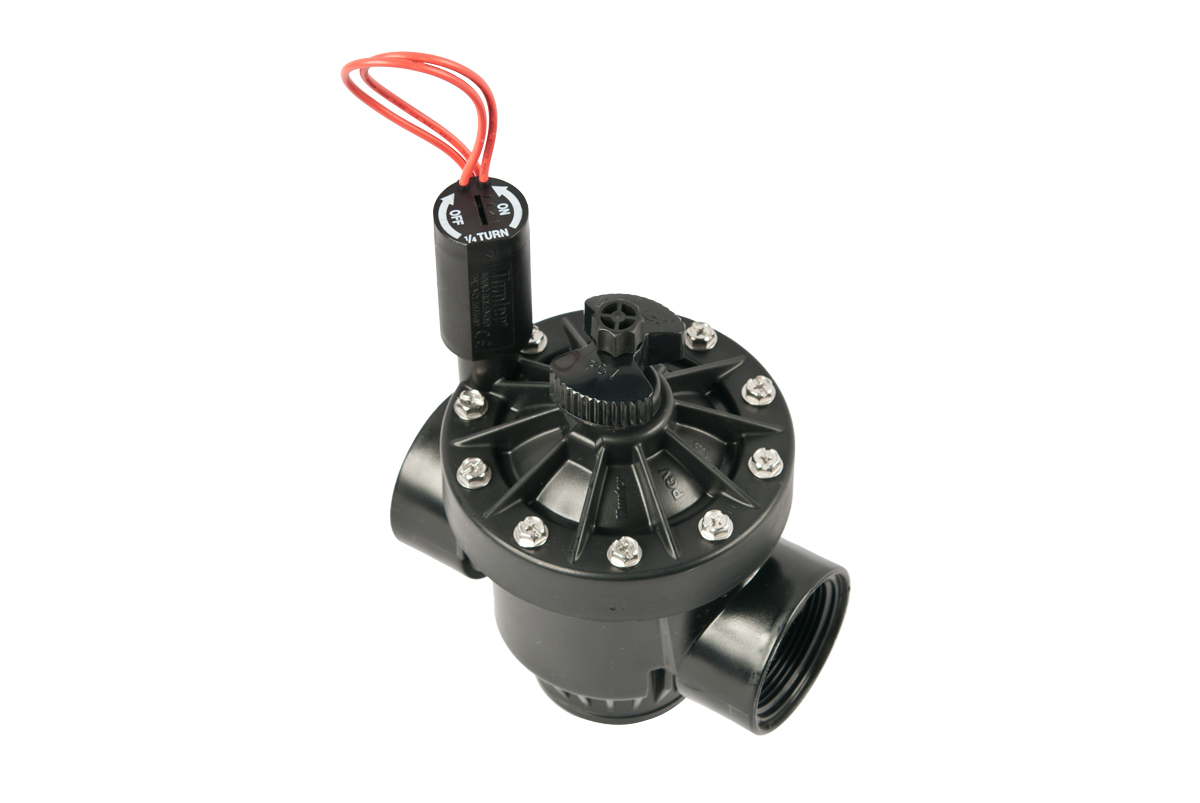

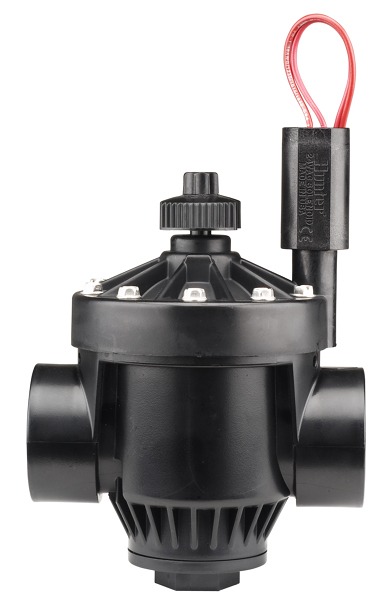

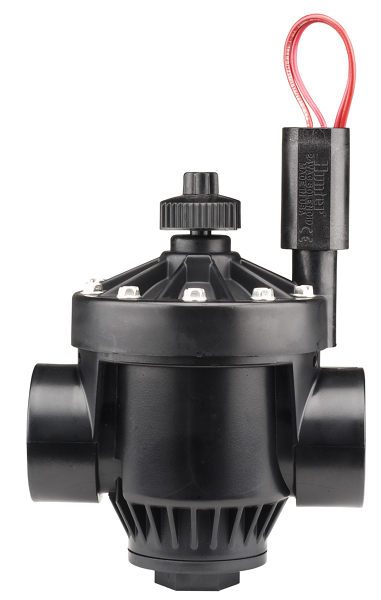

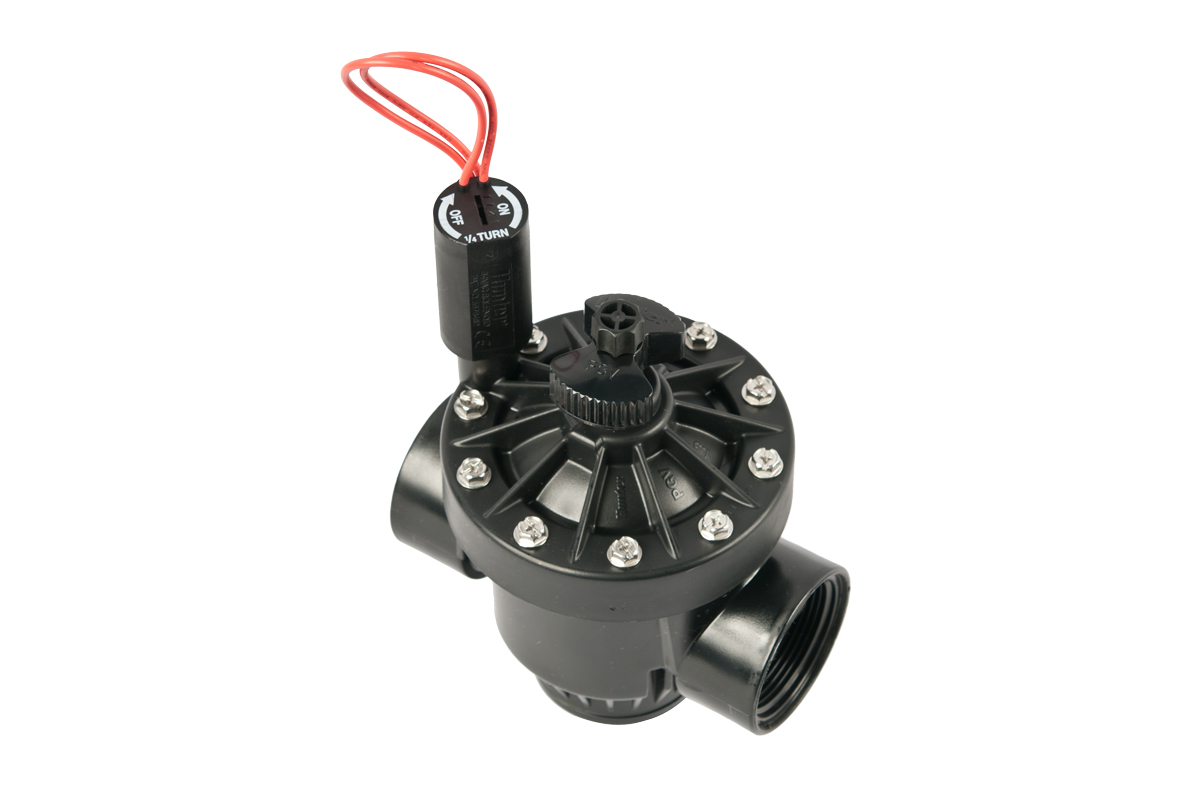

Electrovalve 11/2

Description

FEATURES

• Application : residential/light commercial

• External and internal manual bleed allows quick and easy “at the valve” activation

• Double-beaded diaphragm seal design for superior leak-free performance

• DC latching solenoids enable Hunter’s battery-powered controllers

• Captive bonnet bolts provide hassle-free valve maintenance

• Low flow capability allows use of Hunter’s micro-irrigation products

• Encapsulated 24 VAC solenoid with captive plunger for hassle-free service

• Temperature rating: 66° C

OPERATING SPECIFICATIONS

• Flow rate:
  • PGV-100: 0.2 to 30 GPM
  • PGV-101: 0.2 to 30 GPM
  • PGV-151: 20 to 120 GPM
  • PGV-201: 20 to 150 GPM
• Recommended pressure range: 20 to 150 PSI

SOLENOID SPECIFICATIONS

• 24 VAC solenoid
  • 370 mA inrush, 210 mA holding, 50 cycles
