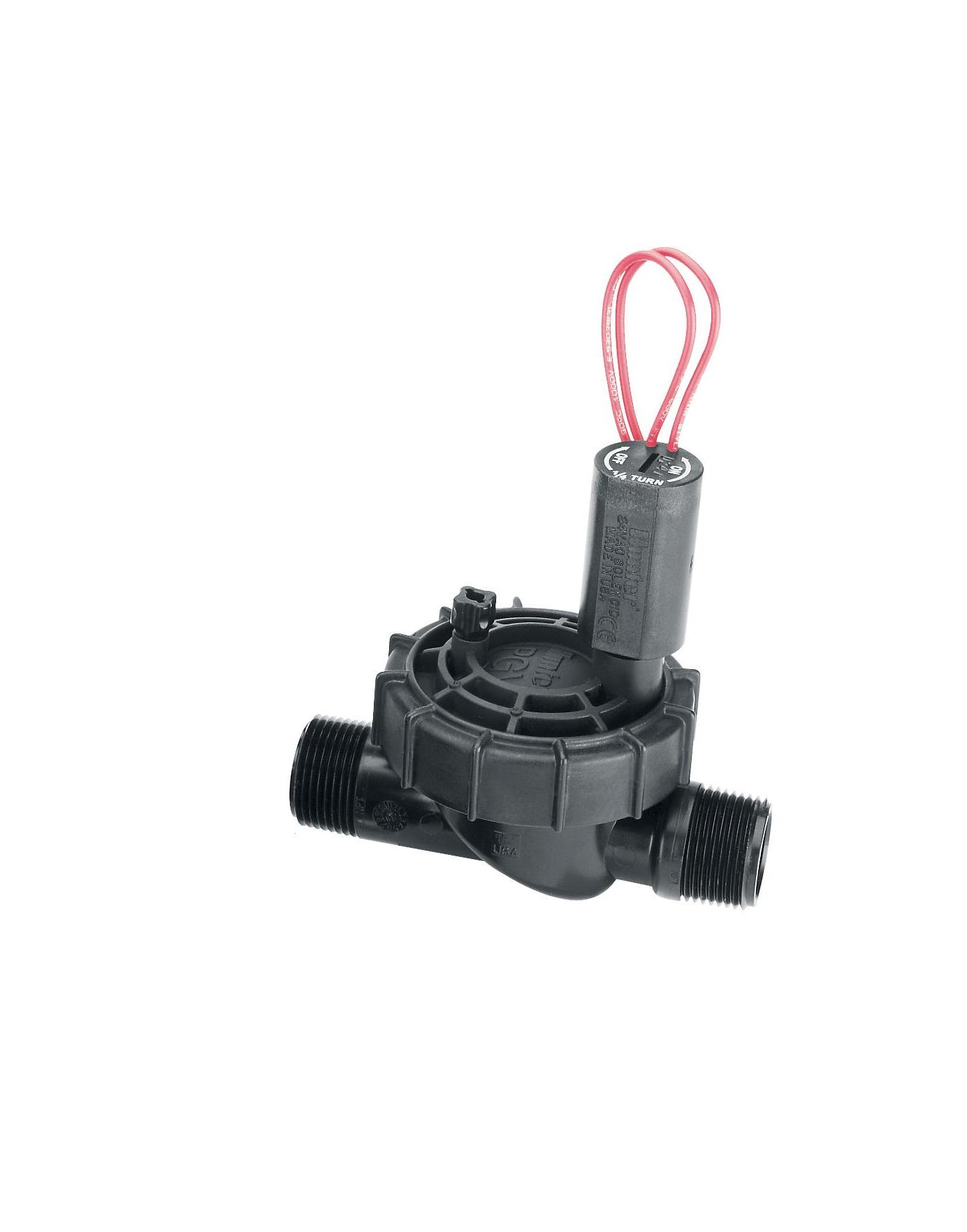

Electrovalve PGV male adaptor 1

Description

FEATURES

• Application : residential
• External and internal manual bleed allows quick and easy "at the valve" activation
• Durable glass-filled nylon threaded bonnet ring allows easy access without tools
• Double-beaded diaphragm seal design for superior leak-free performance
• DC latching solenoids enable Hunter's battery-powered controllers
• Low flow capability allows use of Hunter's microirrigation products
• Encapsulated 24VAC solenoid with captive plunger for hassle-free service
• Temperature racing : 66^oC

OPERATING SPECIFICATIONS

• Flow rate : 0.05 to 7mc/h; 0.7 to 115l/min
• Recommended pressure range : 1.5 to 10bar; 150 to 1000kPa

SOLENOID SPECIFICATION

24VAC, 370mA inrush, 190mA holding, 50Hz

DIMENSIONS

14cm H x 11cm L x 8cm W
