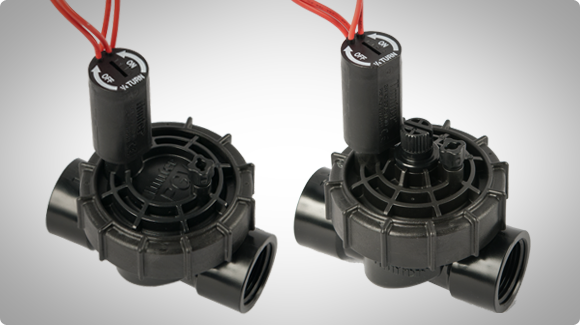

Electric-valve PGV JAR TOP 1

Description

FEATURES

• Application: Residential

• Size: 1”

• External and internal manual bleed allows quick and easy “at the valve” activation

• Durable glass-filled nylon threaded bonnet ring allows easy access without tools

• Double-beaded diaphragm seal design for superior leak-free performance

• DC latching solenoids enable Hunter’s battery-powered controllers

• Low flow capability allows use of Hunter’s micro irrigation products

• Encapsulated 24 VAC solenoid with captive plunger for hassle-free service

Operating Specifications

• Flow rate: 0.2 to 30 GPM
• Recommended pressure range: 20 to 150 PSI

Solenoid Specifications

• 24 VAC solenoid
  • 350 mA inrush, 190 mA holding, 60 cycles
  • 370 mA inrush, 210 mA holding, 50 cycles

Factory Installed Options

• Valve without solenoid
• DC latching solenoid
