Description

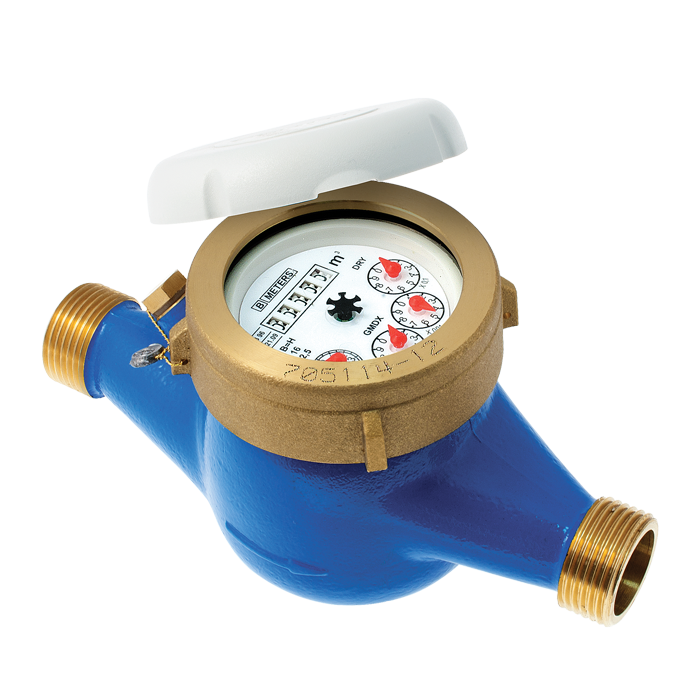

Cold water meter BMeters GMDX multijet with dry dial class B DN 15-1/2 "and 5 ' role.
Warranty: 2 years
Approved metrological
Multi jet water meter, dry dial, direct reading.
Risk of corrosion and sedimentation reduced to a minimum.
Suitable for domestic and industrial applications.
Long life and high precision guaranteed.
Technical features:
DN mm: 15
Inches: 1/2 \ ' \ '
Maximum flow rate m3/h: 3
Nominal flow rate: 1.5 m3/h
Nominal pressure: 16 bar
Max temperature ° C: 30
Length: 165 mm
Weight: 1.2 kg
Metrology grade: B
BMeters multi Jet water jet:
Multi jet water meters are used in both residential and industrial.
After placing the meter, water flow is split into smaller debits to summon faucet they will hit the turbine simultaneously in different vane wheel case, perfect balance.
Subsequently, the water is discharged at the top of the faucet, ensuring the best performance and accuracy of the meter.
Multi jet water meters are available in 3 different types:
-Meters with wet dial where the mechanism is completely immersed in water, with direct/mechanical transmission of the rounds from the turbine to the mechanism.
-Meters with wet dial with protected rolls in a special liquid capsule. Direct transmission from the turbine to the mechanism.
-Dry dial Meter: the water passes through the turbine Chamber without affecting the mechanism: a sealing plate of water at the top of the meter and transmissions is magnetic.
