Description

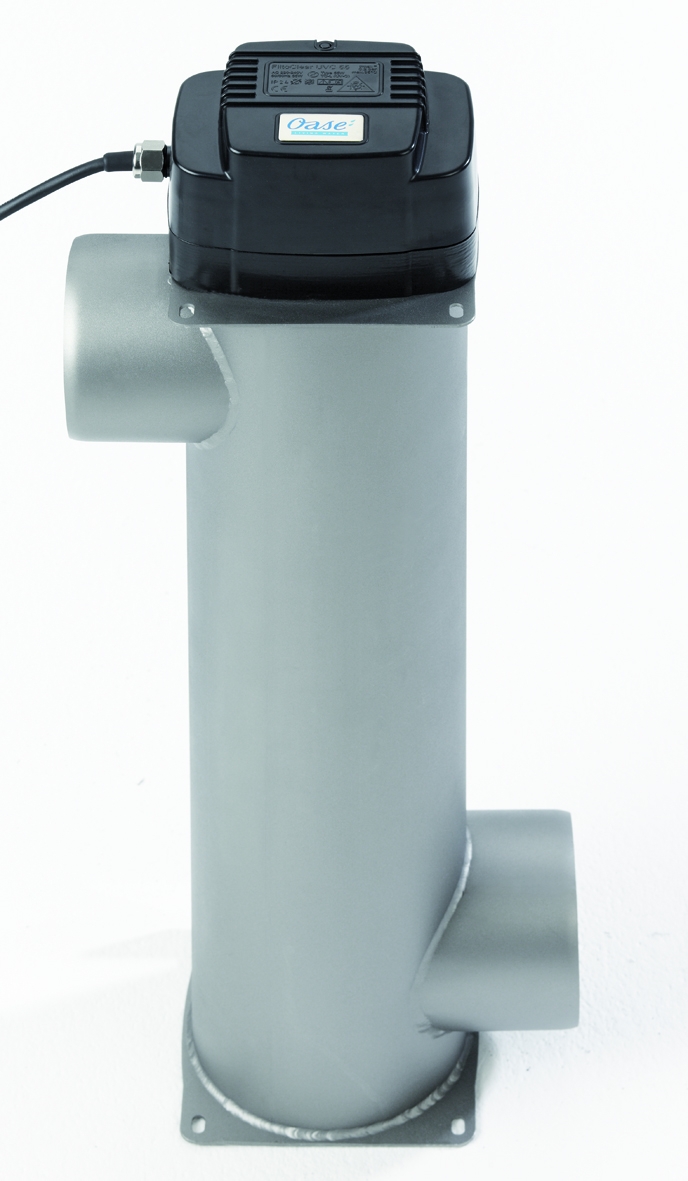

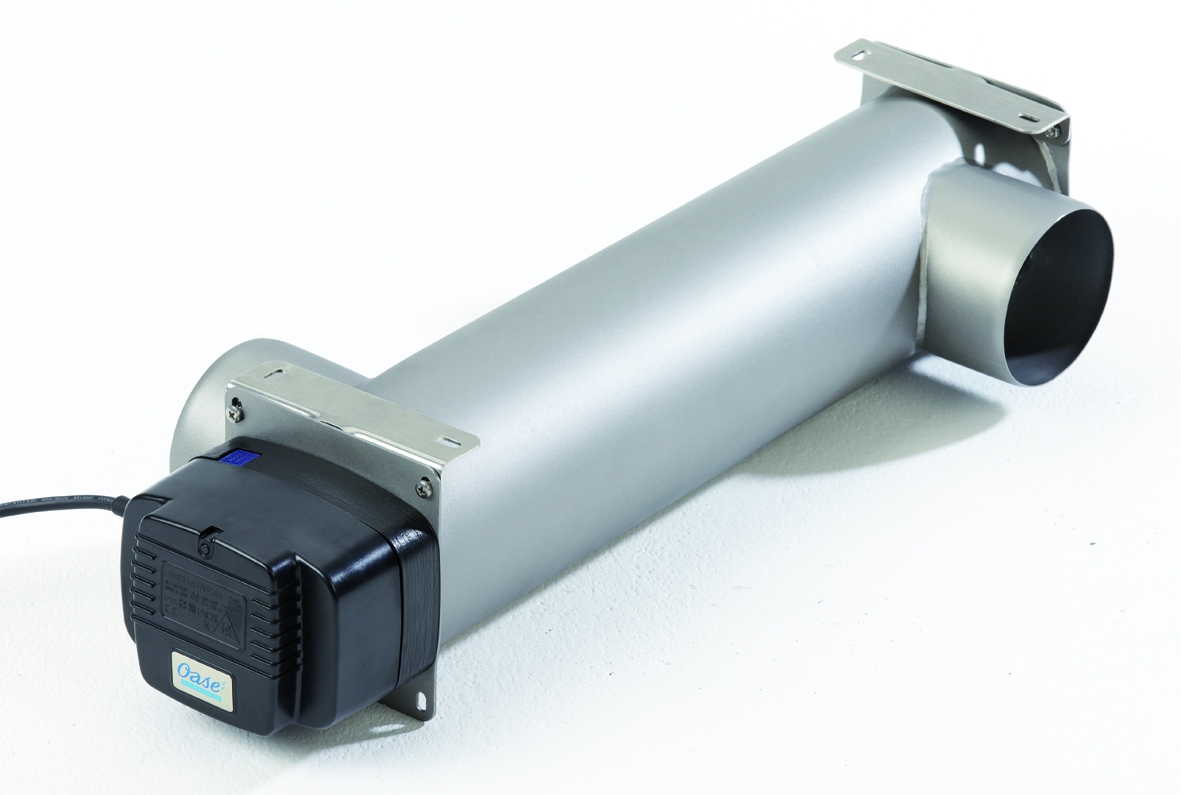

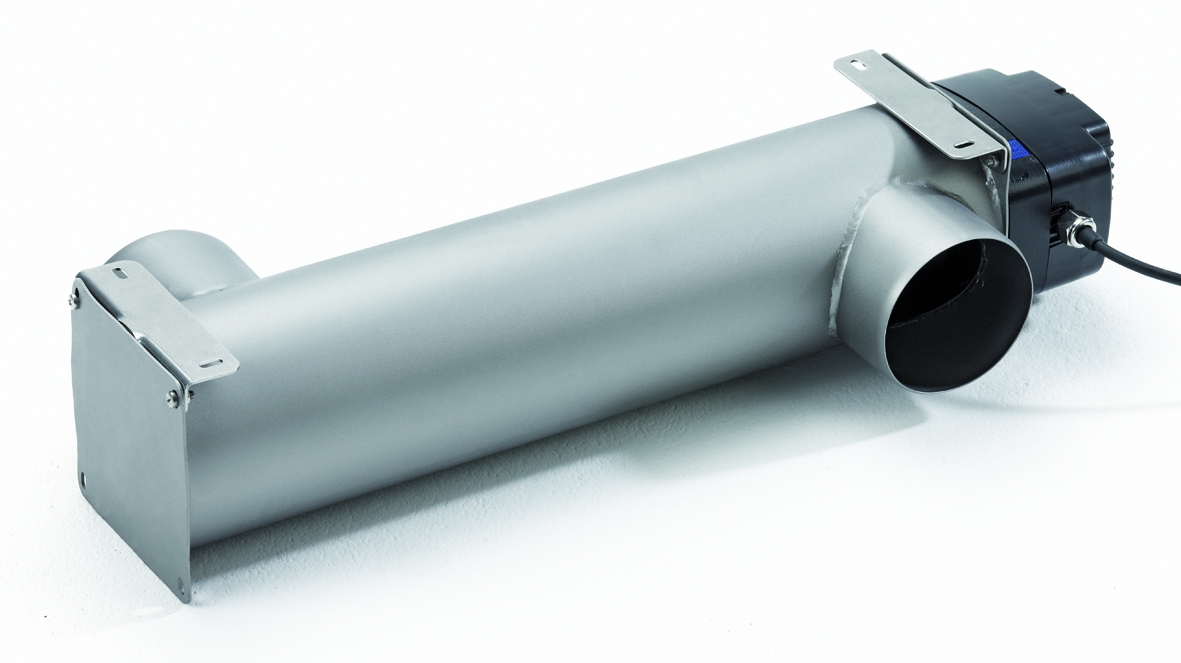

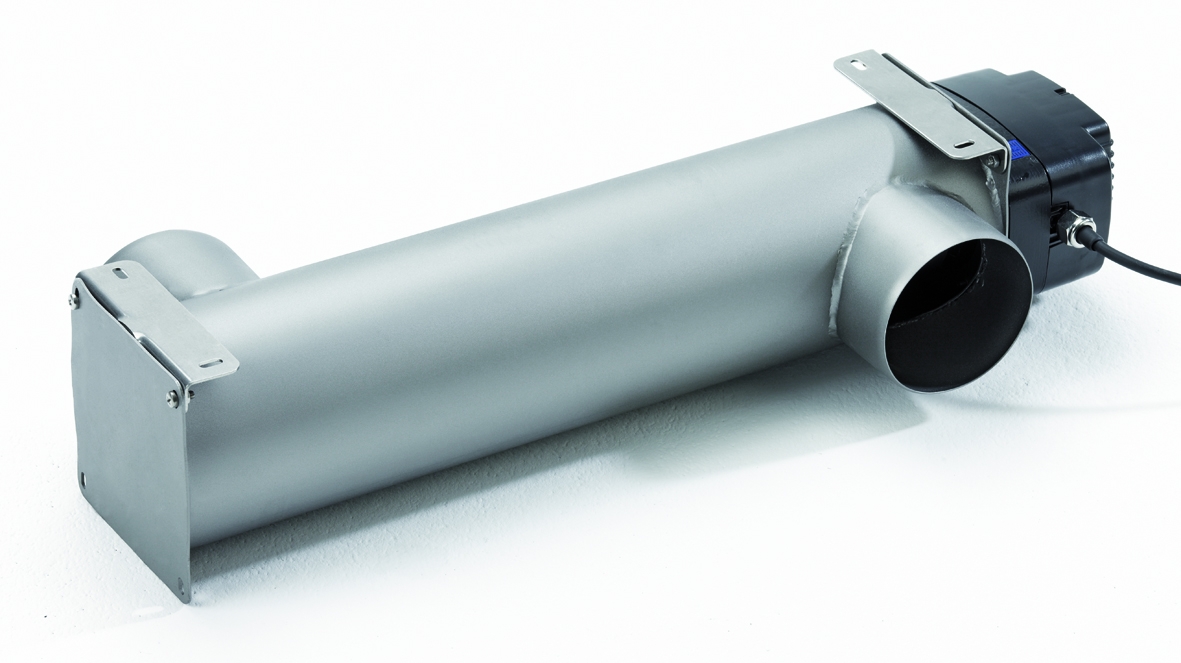

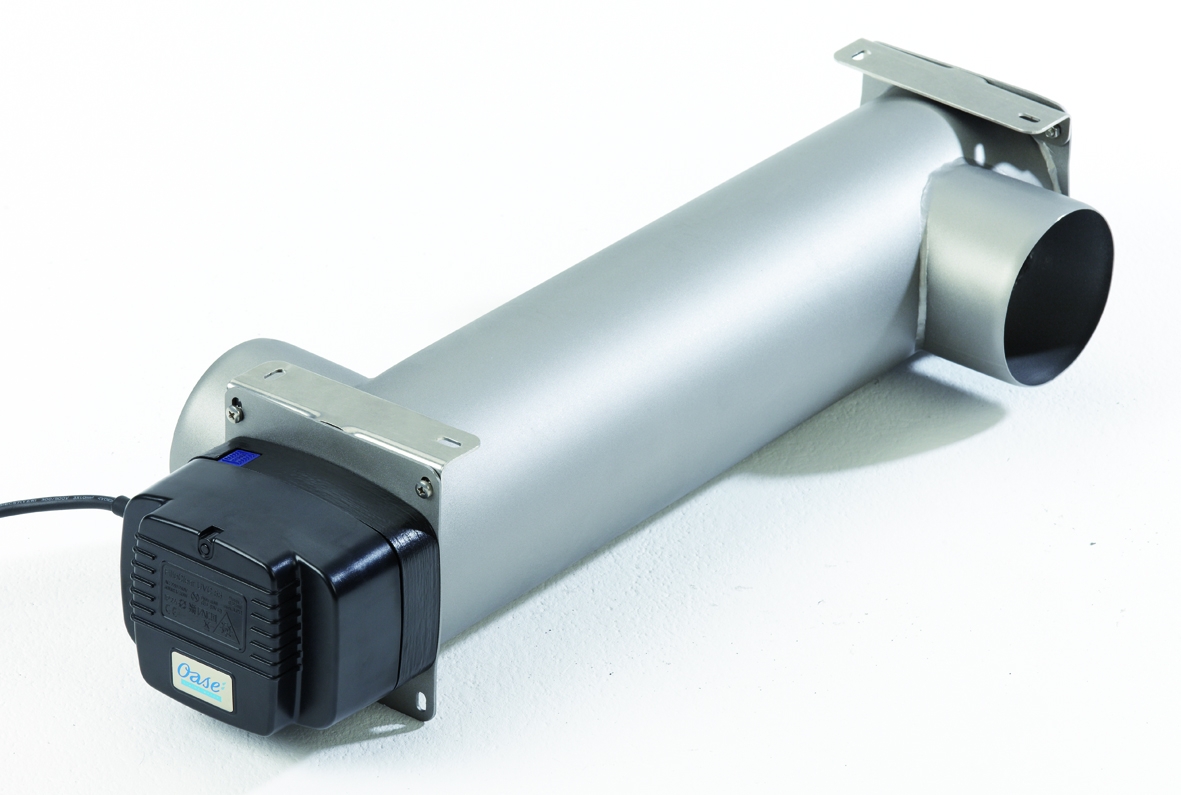

Bitron Gravity - Highly efficient perfect for gravity fed vfilter systems
- Suitable for ponds up to 70m3
- Extremely effective elimination of algae and pathogenic bacteria(to 12.5m3/h)- similar to an immersion UVC
- 100% VDE-certified safety ;does not cause eye injuries
- Energy efficient thanks to electronic ballast
- Effective sterilisation,thanks to long water dwell time in the Bitron
- Flow optimsed reactor design ensures direct and virtually loss free UV radiation
- High quality V4A stainless steel housing for stability and good reflection rates
- Extremely easy installation with stainless stel connection elements
- Flexible connection before or after the ProfiClear filter system - also for other gravity fed application
- In the event of pond enlargements or increase in koi stock,extension with additional Bitron Gravity UVC devices is possible at any time
- Visual function check
- Horizontal or vertical setup possible
- Incl.2xDN 110 quick release couplings,easy to install
- With the adapter set it is also suitable for pump fed operation
- ClearWater Guarantee when used in conjunction with OASE ProfiClear filters
|
Bitronic Gravity 55W
|
Dimensions(LxWxH)
|
mm
|
700x260x160
|
Rated voltage
|
|
220 – 240 V/50/60 Hz
|
Power cosumption
|
W
|
55
|
Power cable length
|
m
|
5.00
|
Net weight
|
kg
|
7.10
|
UVC power
|
W
|
55
|
Number of inlets
|
ea
|
1
|
Connections inlet
|
|
DN 110
|
Number of outlets
|
ea
|
1
|
Connections outlet
|
|
DN 110
|
Max. operating pressure
|
bar
|
0.60
|
Min. flow rate
|
l/h
|
5000
|
Max. flow rate
|
l/h
|
30000
|
Rec. flow rate(gravitation)
|
l/h
|
12500
|
Suitable for ponds up to max.
|
m3
|
70.0
|
Suitable for ponds with fish stock
|
m3
|
40.0
|
Suitable for ponds with koi
|
m3
|
25.0
|
Material
|
|
plastic/stainless steel
|
Connection to
|
|
ProfiClear,AquaMax Gravity Eco
|
Type of use
|
|
Pump fed system,gravity fed system
|
Other
|
|
Visual function check
|
