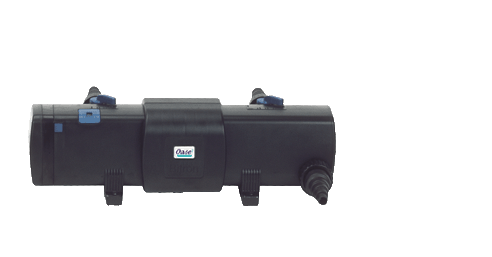

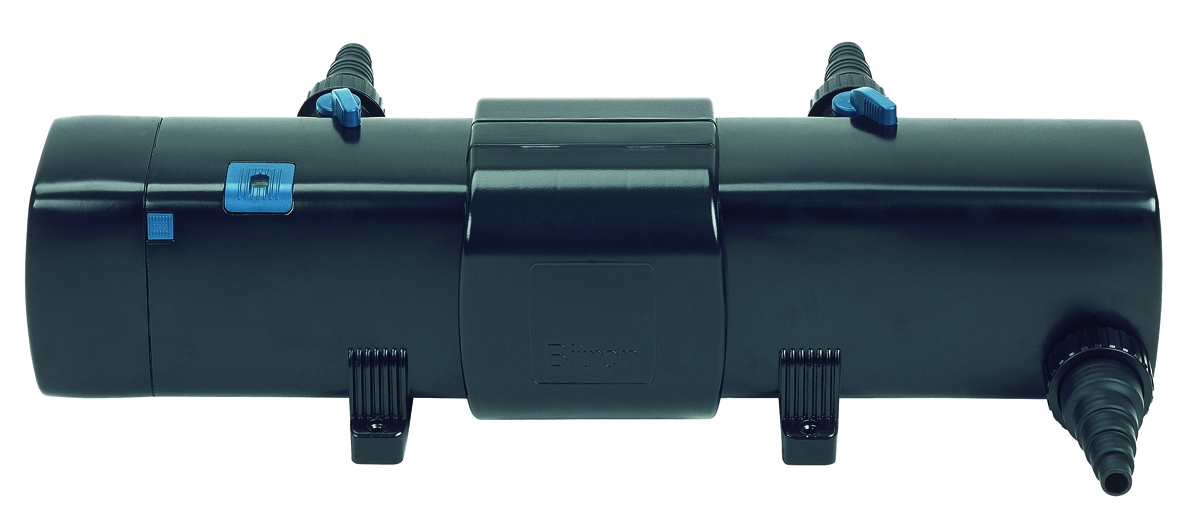

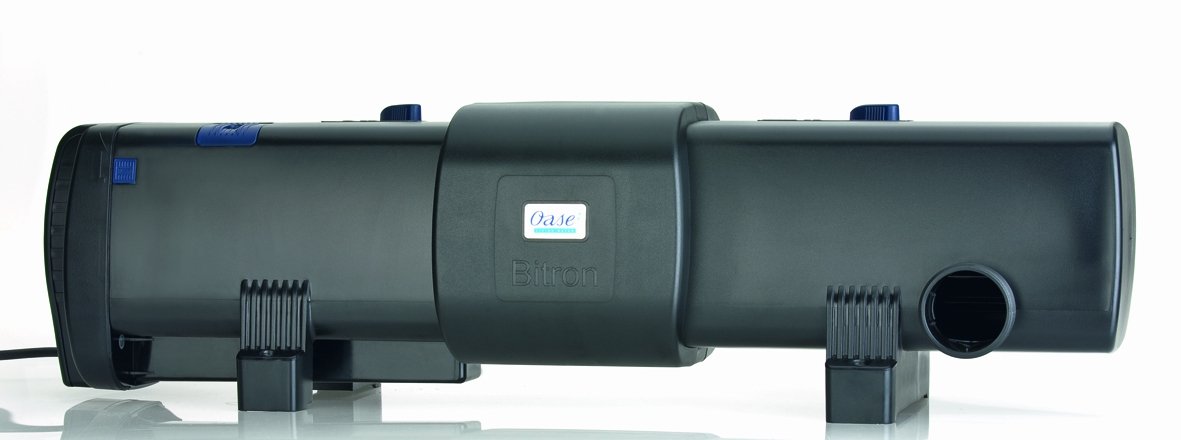

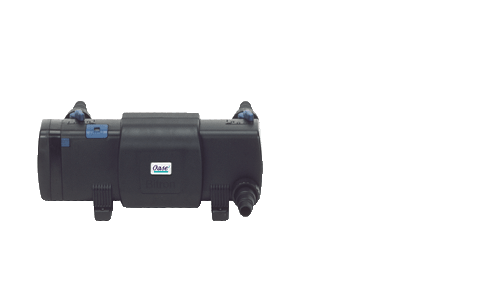

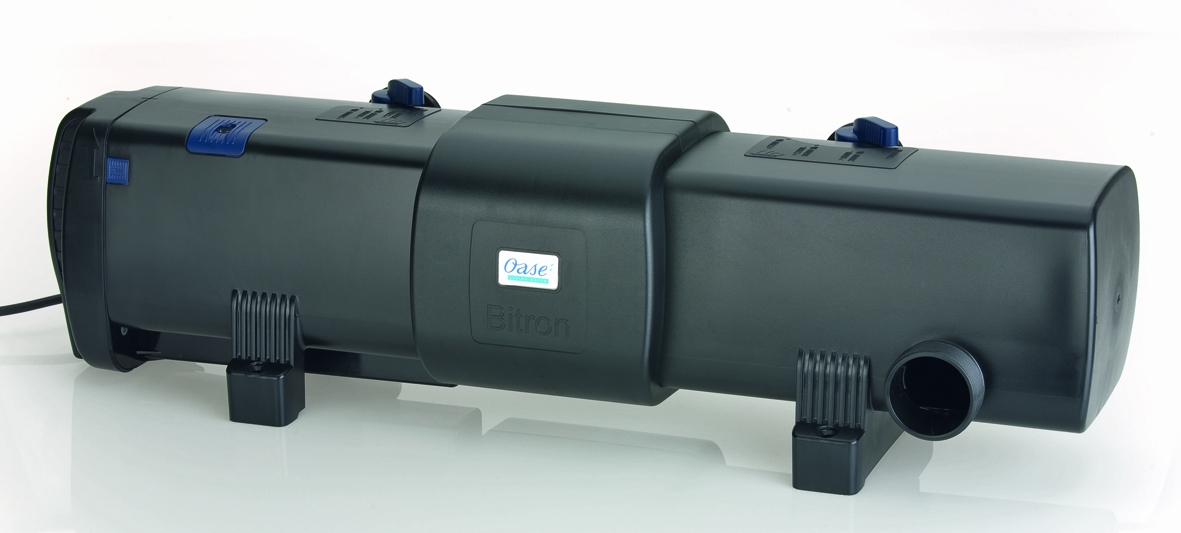

Bitron C

Code: Bitronic C

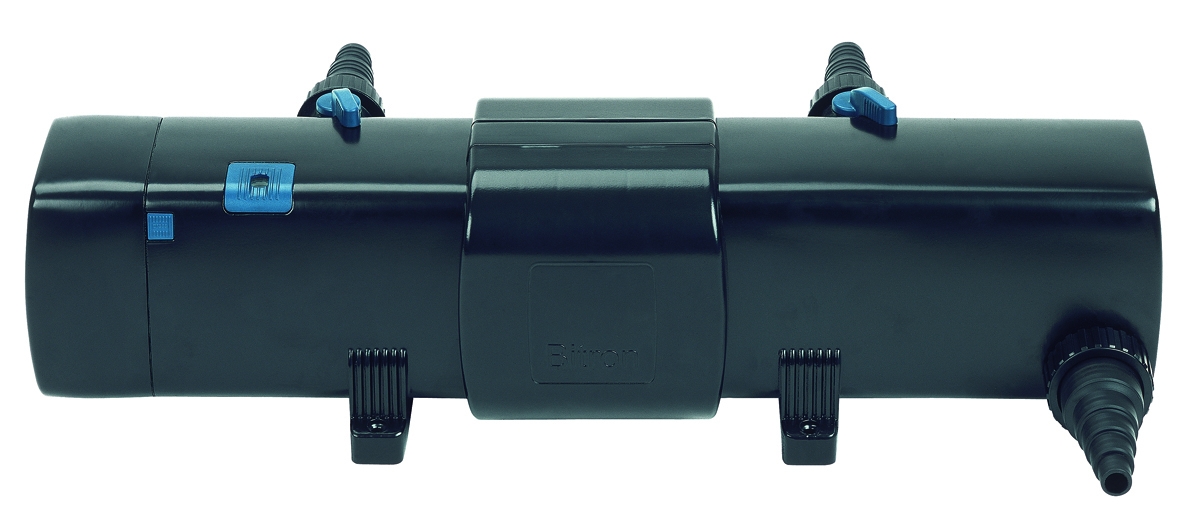

Bitron C UVC clarifiers with patented self cleaning and bypass technology

Suitable for ponds upo to 110m³
Elimination of suspended algae(green water)
Reduction of harmful bacteria and pathogen levels
UVC radiation is at its best at all times thanks to patented,autonomous bulb cleaning
Bypass technology enables optimal irradiation of the polluted water,even at high flow through rates
Individual water flow adjustement for optimal adaptation to the connected filter pump
Integrated magnets protect the UVC technology against limescale deposits
Visual function check of the UVC bulb
100% VDE certified safety;does not cause eye injuries

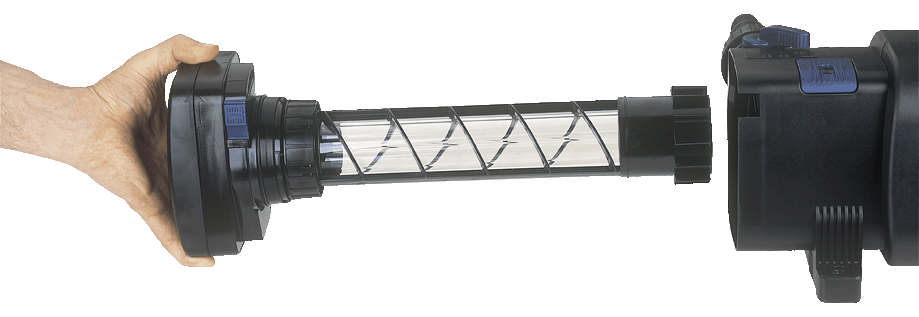

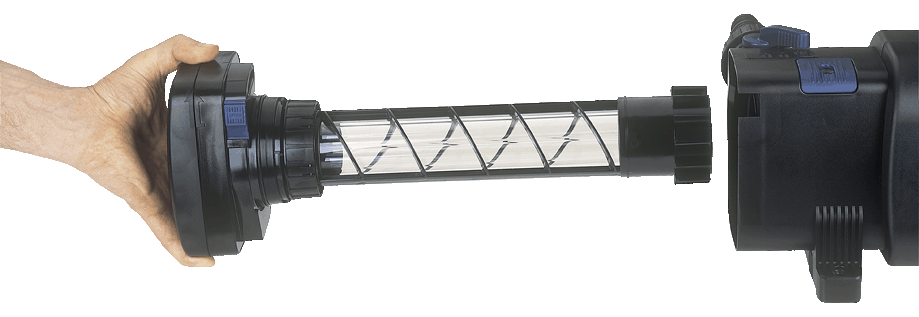

Quick release technology for easy bulb replacement
High quality workmanship with impact resistant plastic housing
Incl. high quality UVC bulb
Including OASE Clear Water Guarantee in conction with the OASE flow through filters, BioSmart,BioTec and ProfiClear

Tehnical data:

		Bitron C 24W	Bitron C 36W	Bitron C 55W		Bitron C 72W	Bitron C 110W
Dimensions (LxWxH)	mm	440x180x198	600x180x198		730x215x200
Rated voltage		220 – 240 V/50/60 Hz
Power consumption	W	24	36	55		72	110
Power cable length	m	5.00
Net weight	kg	3.90	4.48	4.52		6.44	6.50
UVC power	W	24	36	55		72	110
Bypass control		manually
Number of inlets	EA	1
Connections inlet		1”,1¼”,1½”	¾”,1”,1¼”,1½”
Number of outlets	EA	2
Connections outlet		1”,1¼”,1½”
Max. operating pressure	bar	0.50			1.00
Min. flow rate		4000	8000		12000
max. flow rate	l/h	1500	30000			40000
Suitable for ponds up to max.	m³	25.0	40.0	60.0		75.0	110.0
Suitable for ponds with fish stock	m³	12.5	20.0	30.0		37.5	55.0
Suitable for ponds with koi	m³	6.5	10.0	15.0		19.0	27.5
Other		Visual function check
