Description

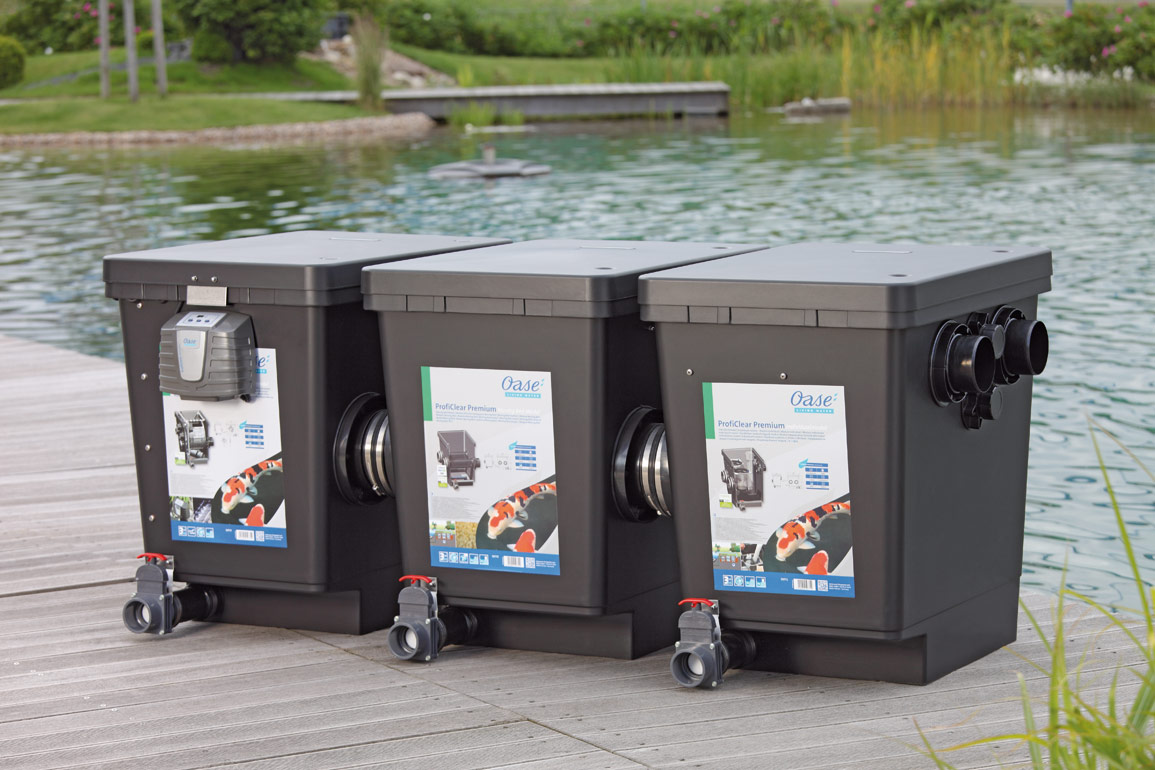

ProfiClear Premium Sophisticated filter system for koi ponds
- Intelligent high end module filter system for koi ponds and other large bodies of water to 260 m3
- Outstanding filter capacity with intelligent control function
- Intelligent self cleaning function for unique maintenance free operation(drum filter module)
- Highly effective decomposition of pollutants and nutrients,thanks to professional filter media and moving bed process(MovingBed module)
- Flexible adaptation of the filter system to individual requirements(individual module)
- Mature professional technology with more than 3 years of developement time
- Innovative and reliable product "made in Germany"(except pressure pump)

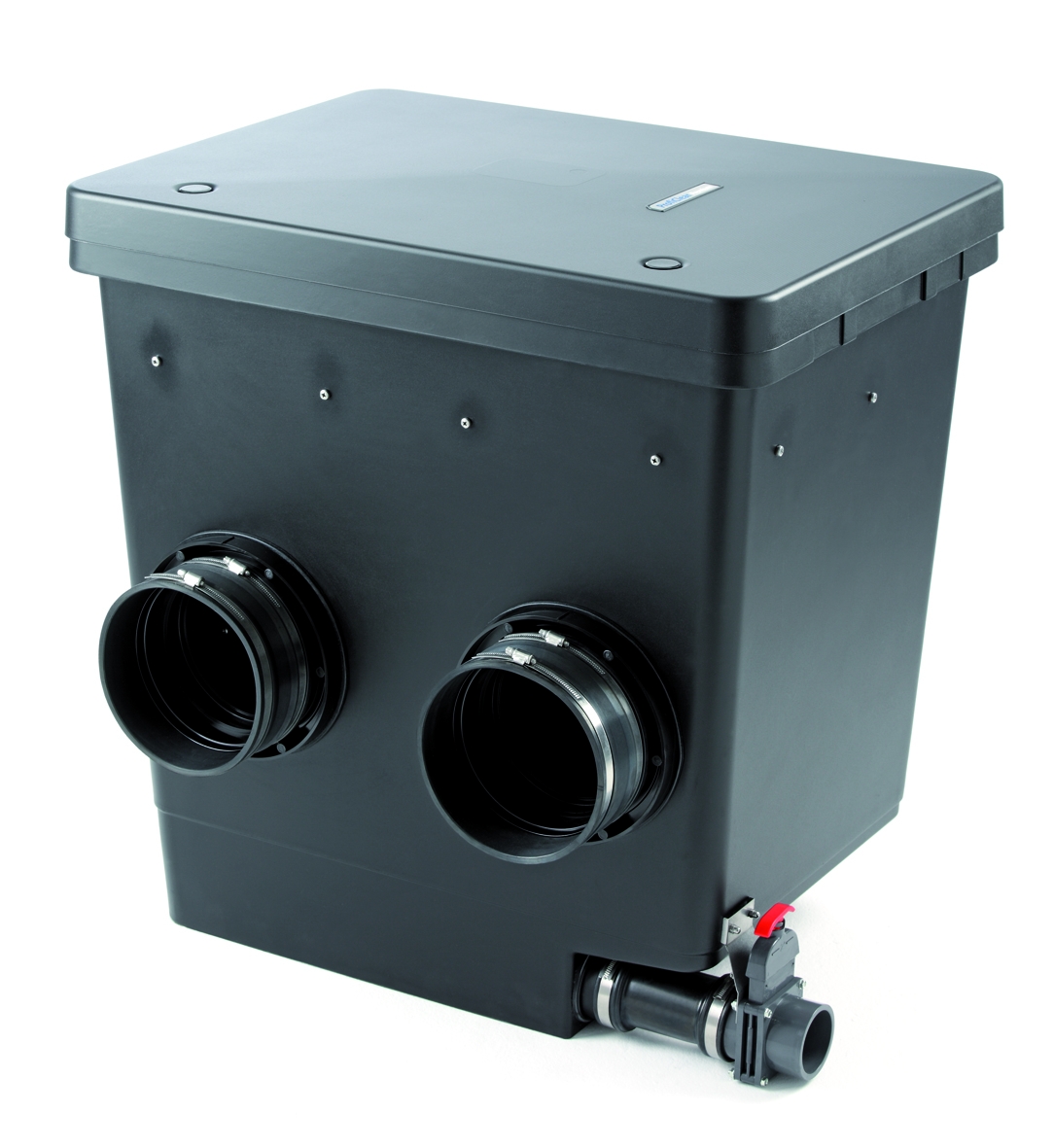

DrumFilter pump fed DrumFilter gravity fed system
- Filter capacity to 60μm and 25 m3/h flow through
- Automatic self cleaning

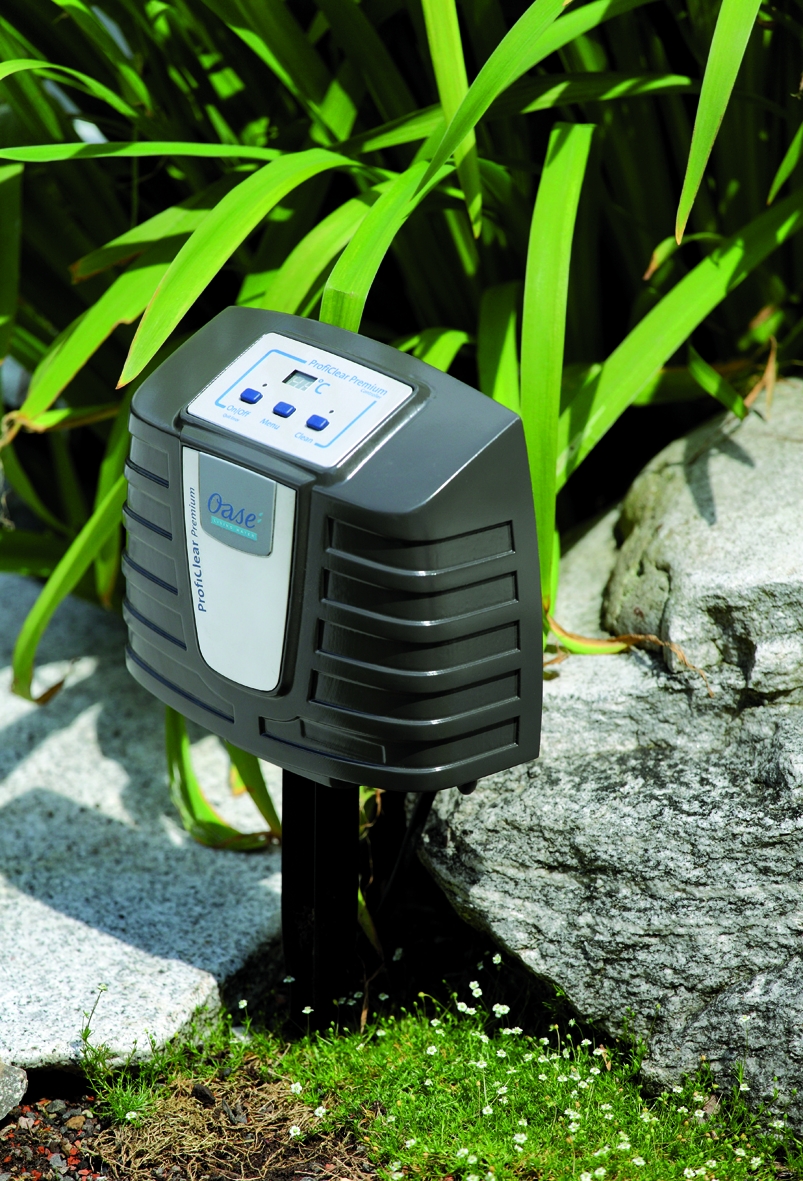

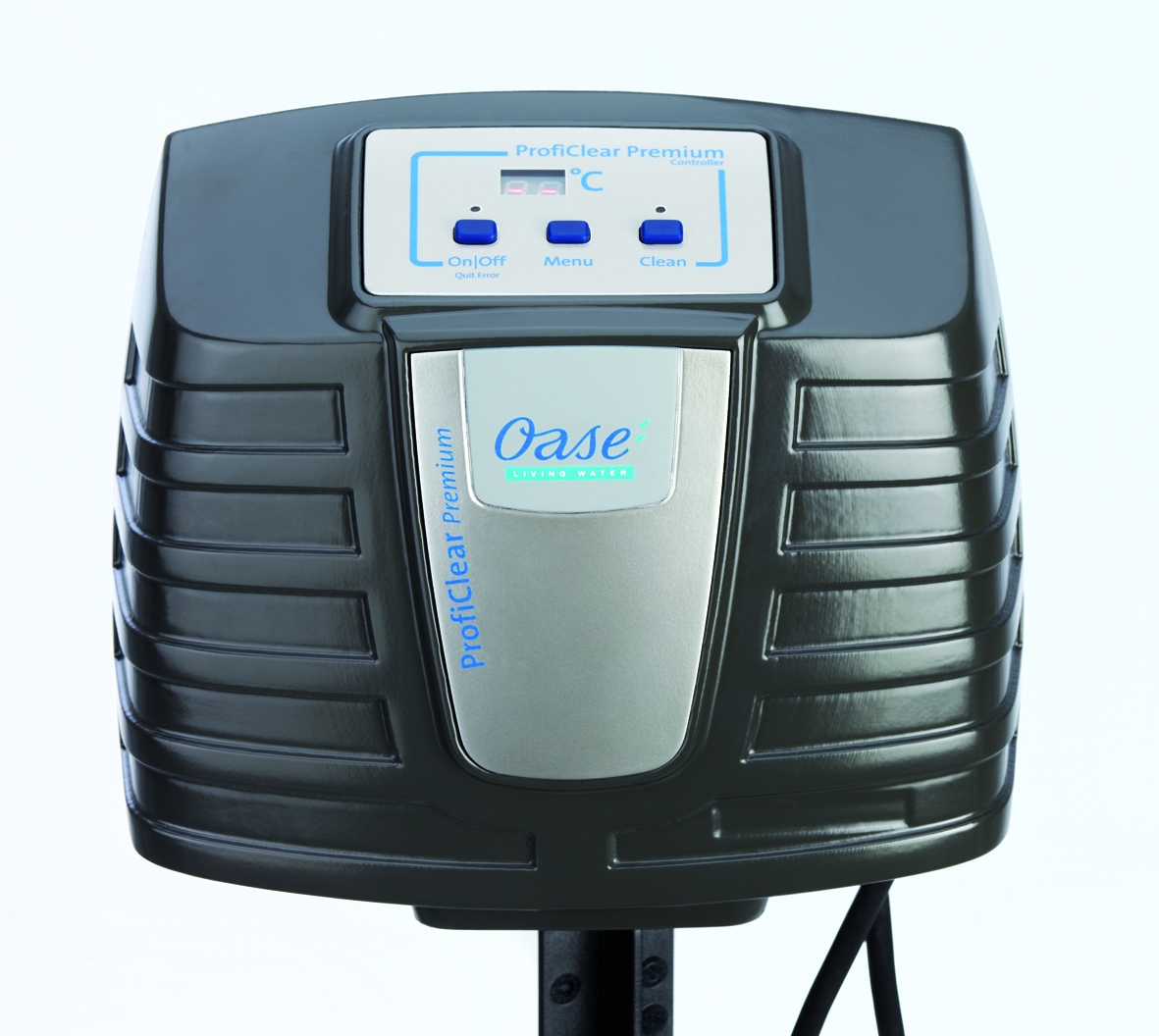

- A watertight microcontroller system monitors and controls the main function
- VDE testing certifies reliable and safe functions
- Gravity fed system only:full flexibility for the connection with up to 4xDN110 inlets
- Safetly level switch in the pumped system prevents jamming due to debris particles
- Massive stainless steel elements

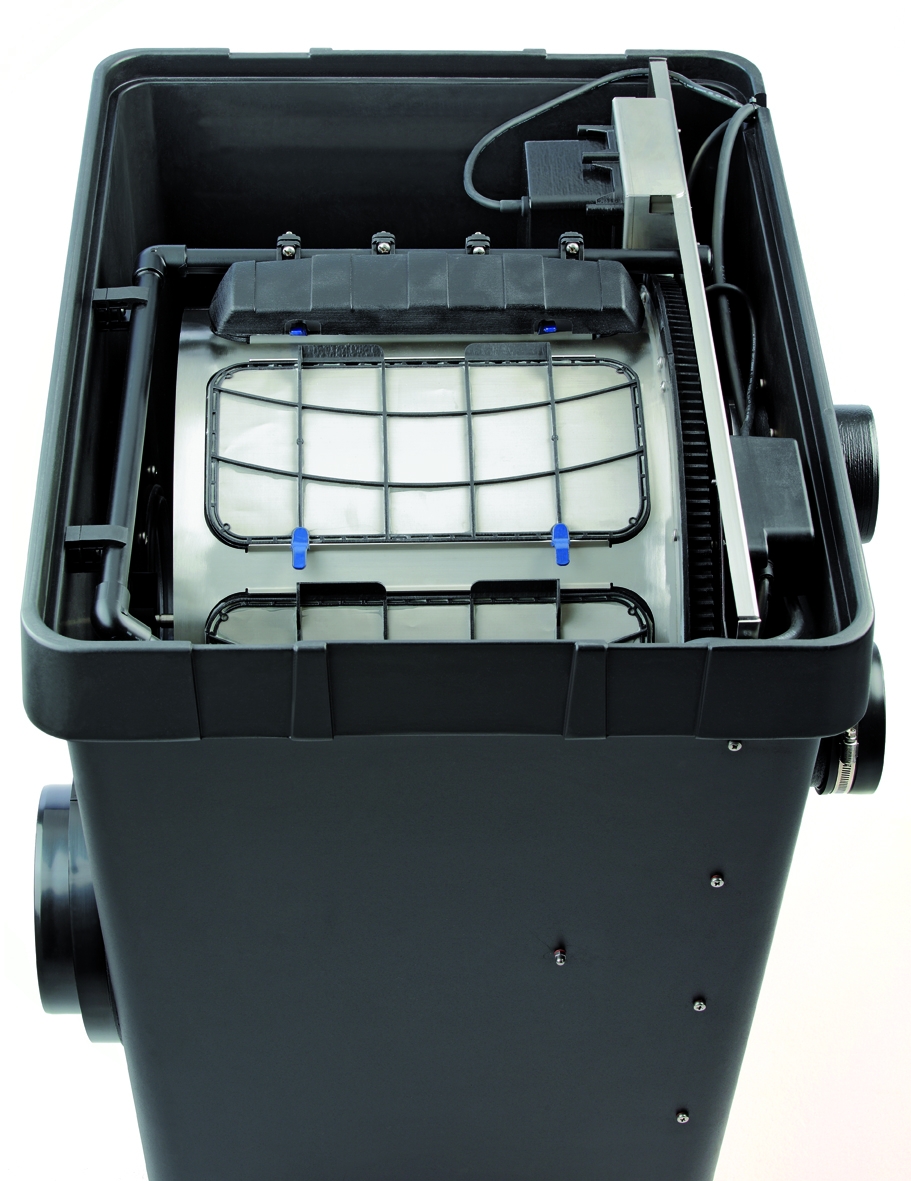

- Individually removable sieve elements (no tools required) and free wheeling function
- Incomparably quiet
- High quality pressure pump is integrated for flushing the drum
- Filter capacity to 60μm and 33 m3/h flow through
Tehnical data:
|
ProfiClear Premium
|
DrumFilter pump fed
|
|
Dimensions(LxWxH)
|
mm
|
830x600x820
|
|
Rated voltage
|
|
230V/50HZ
|
|
Power consumption
|
W
|
5
|
|
Power consumption cleaning
|
W
|
1090
|
|
Cable length
|
m
|
2.00+5.00
|
|
Net weight
|
kg
|
70.00
|
|
Control unit
|
|
Mikrocontroller
|
|
Temperature display
|
|
Digital
|
|
Coarse debris extraction
|
μm
|
60
|
|

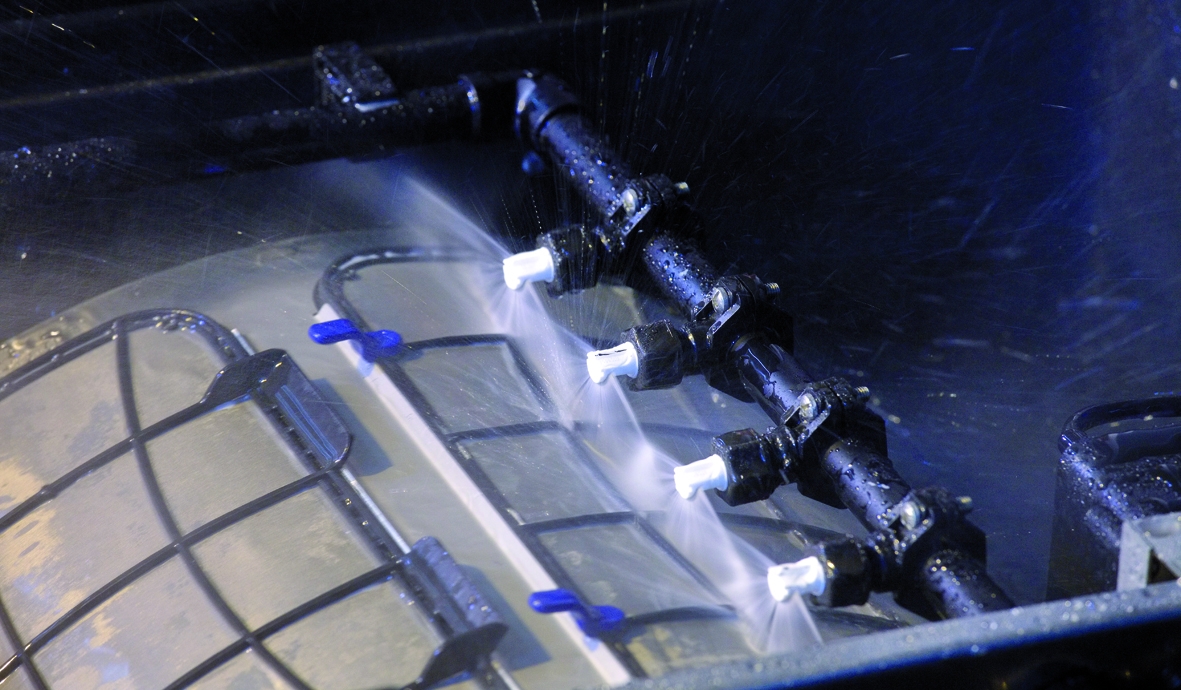

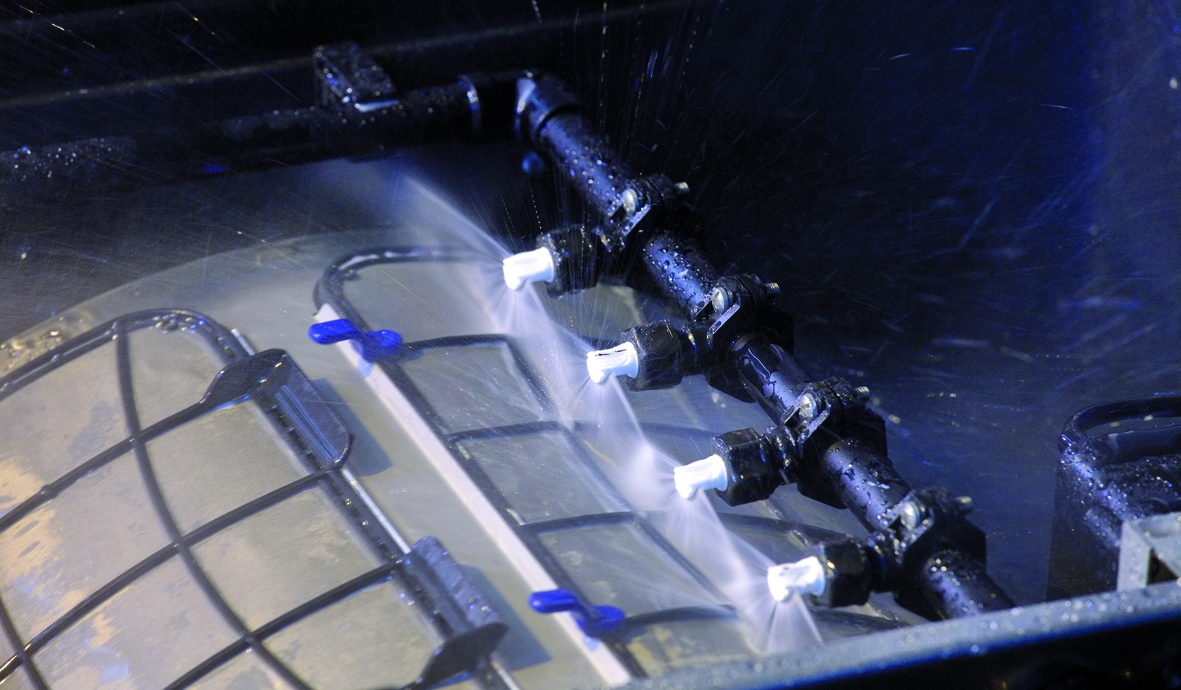

Number of nozzles/flush quantity
|
|
4 x 2.5 l/min
|
|
Flush pump
|
|
6 bar
|
|
Flush automation
|
|
sensor,time interval,manual
|
|
|
|
|
|
Number of sieve elements
|
ea
|
8
|
|
Filter intake surface
|
cm2
|
4200
|
|
Material
|
|
GRP duroplast/stainless steel
|
|
Number of inlets
|
ea
|
2
|
|
Connections inlet
|
mm
|
50
|
|
Number of outlets
|
ea
|
2
|
|
Connections outlet
|
|
DN150
|
|
Connections sludge discharge
|
|
DN75 , DN110
|
|
Connection to
|
|
Bitron Eco ,Bitron C
|
|
Min. flow rate - max. flow rate
|
l/h
|
10000 - 25000
|
|
Install height above the water level
|
cm
|
40
|
|
Type of use
|
|
Pump fed system
|
|
Other
|
|
Pollutant discharge incl.slide valve
|
|
|
|
|

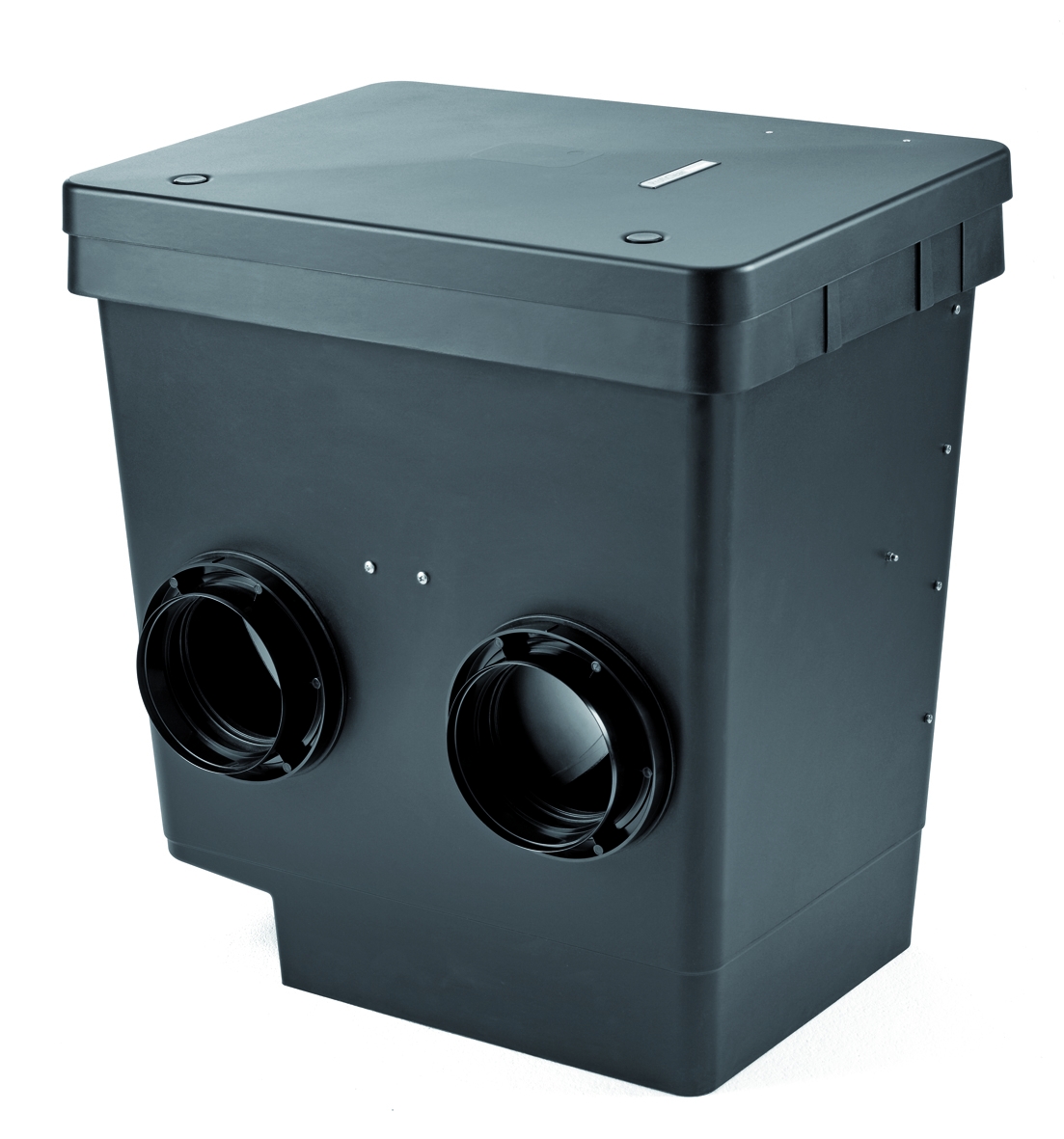

Moving bed module
- Extremely large,protected settlement surface for microorganisms(704 m2/m3)

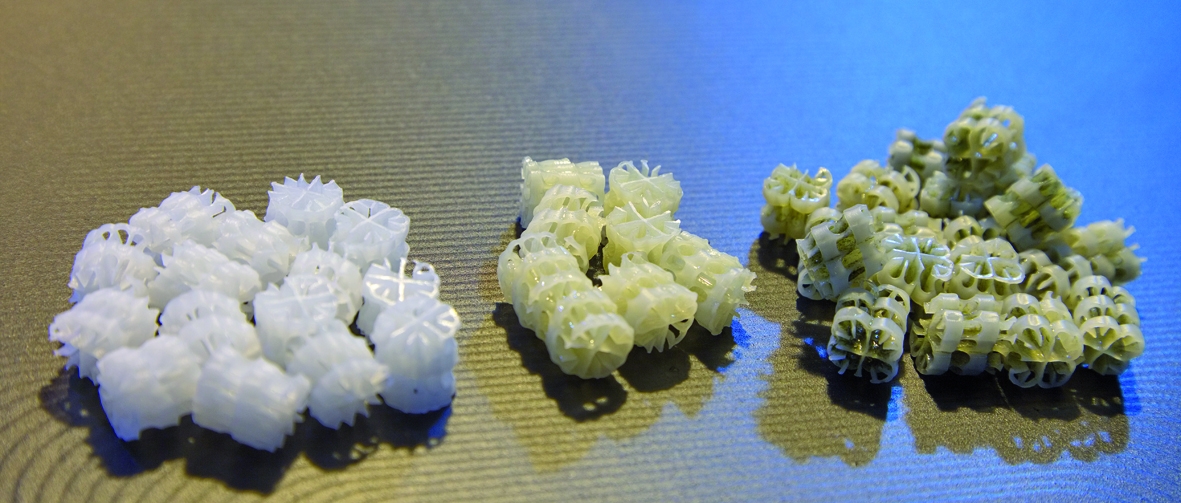

- Innovative bypass technology for optimal movement of the Hel -X Bio-elements
- Removal of toxins,such as ammonium/ammonia,nitrite and nitrate
- 50l of Hel - X decompose approx.300g of fish food per day(can be extended to 100l/module)

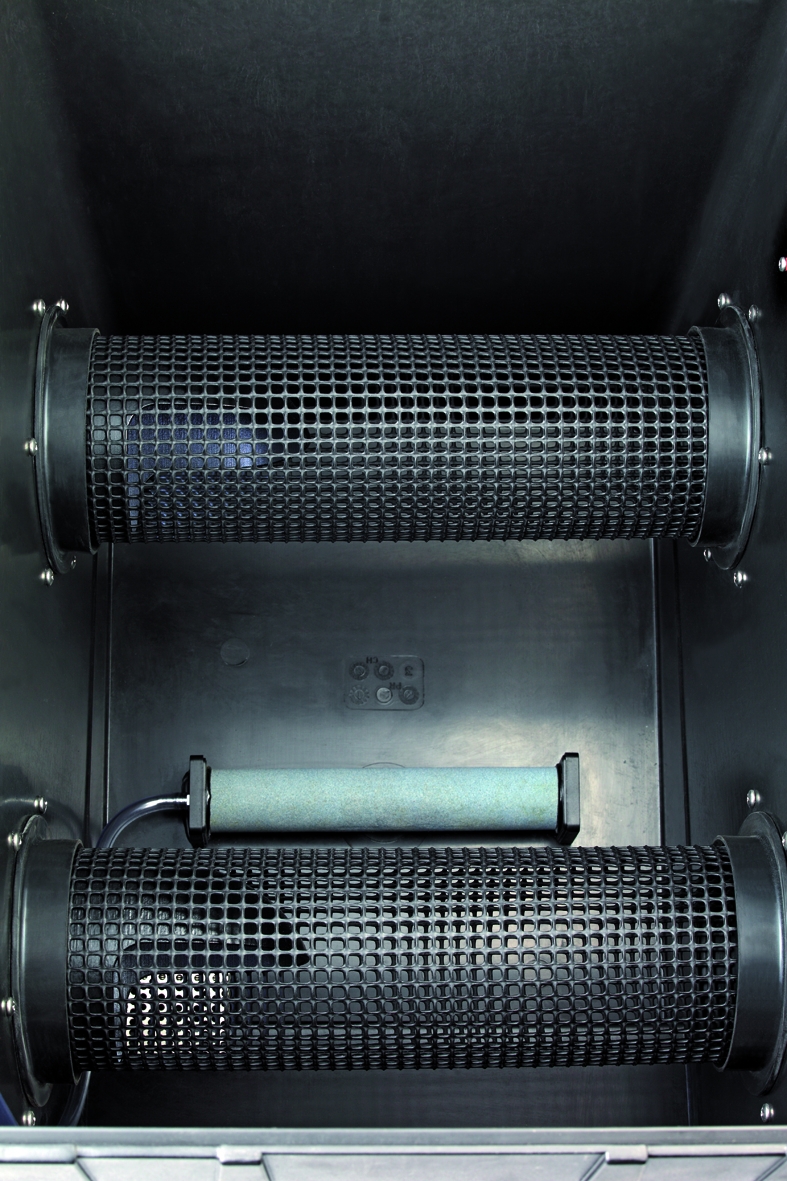

- Aerator bar for oxygen enrichmentand turbulence already installed
- Permanent optimal oxygen supply;self-cleaning effect from dead biomass
- Integrated bottom drain withhigh quality,finely engineered slide valve

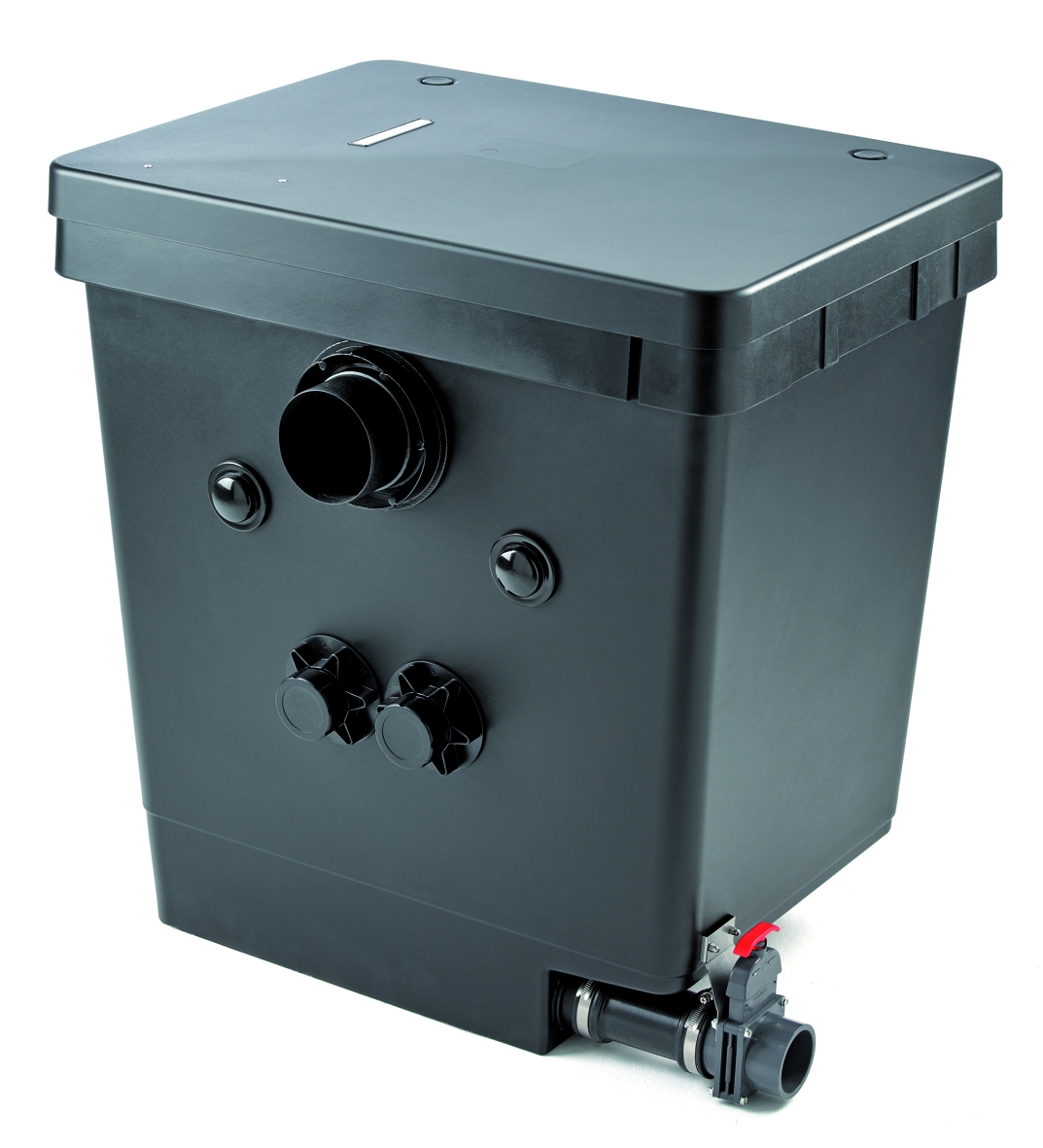

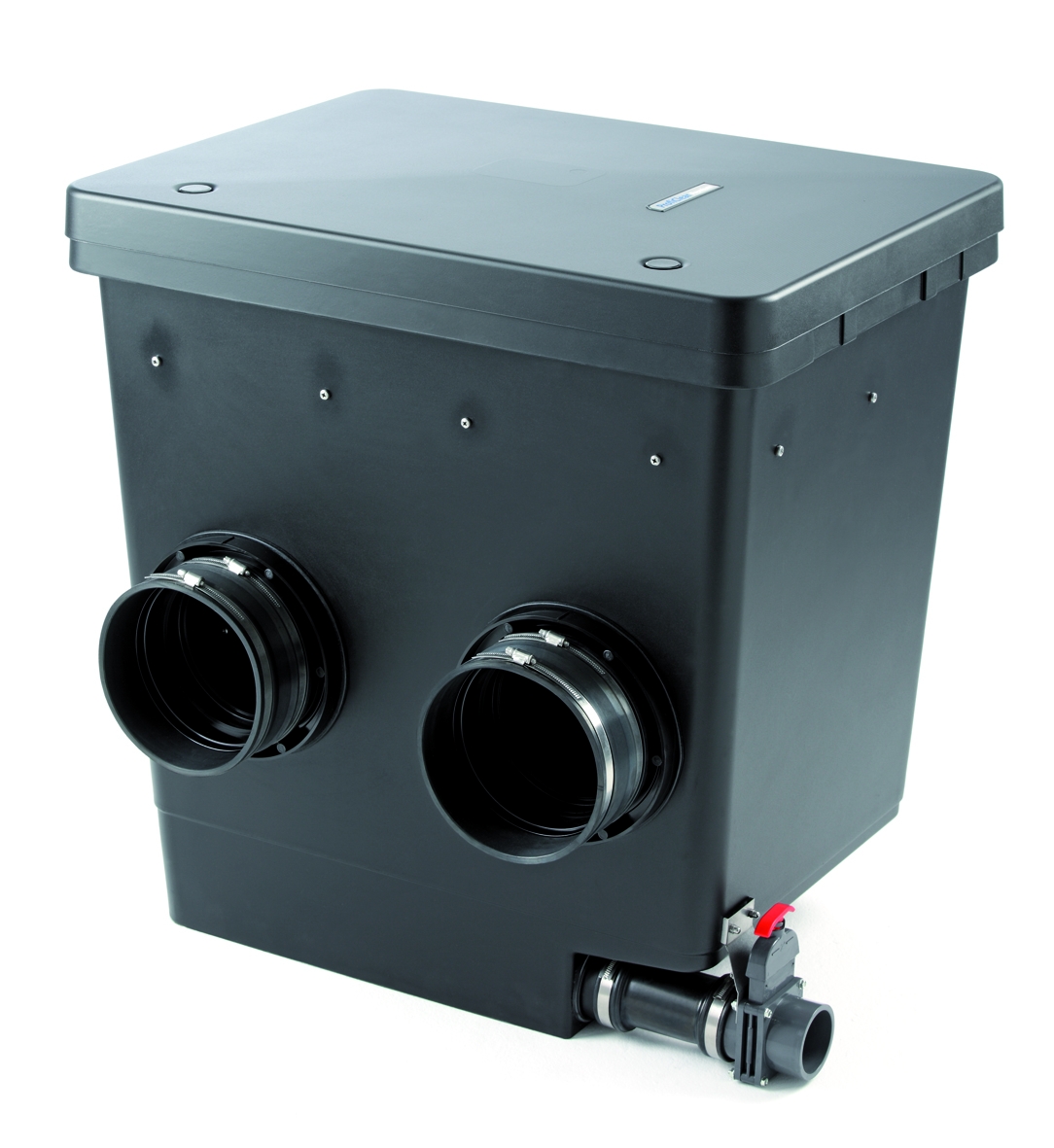

Individual module
- Space saving pump and UVC chamber for
- Maximum flexibility in the connection through DN110 and 2" ducts
- To increase the filter capacity it is possible to fill the individual baskets in the flow area with additional filter medium up to 8 litres fill volume
Tehnical data:
|
ProfiClear Premium
|
Moving bed module
|
Individual module
|
|
Dimensions(LxWxH)
|
mm
|
830x600x820
|
|
Net weight
|
kg
|
44
|
37
|
|
Biological filter surface
|
m2
|
43.0
|
-
|
|
Biolog. filter surface protected
|
m2
|
35.5
|
-
|
|
Individual granulate filter
|
|
-
|
2 x 8 litres
|
|
Number of sieve elements
|
ea
|
-
|
2
|
|
Material
|
|
GFK duroplast
|
GRP/stainless steel
|
|
Number of inlets
|
ea
|
2
|
|
Connections inlet
|
mm
|
180
|
|
Number of outlets
|
ea
|
2
|
|
Connections outlet
|
|
DN150
|
2”, DN110
|
|
Connections sludge discharge
|
|
DN75
|
|
Min. flow rate
|
l/h
|
10000
|
|
Max. flow rate
|
l/h
|
25000
|
|
Conection to
|
|
AquaOxy CWS
2000 - 4800
|
Bitron Gravity,
AquaMax Gravity Eco
|
|
Install height above the water level
|
cm
|
13
|
|
Type of use
|
|
pump fed system,gravity fed system
|
|
Other
|
|
Aeration pre installed, Pollutant discharge
pollutant discharge incl. incl. slide valve
slide valve
|
