Description

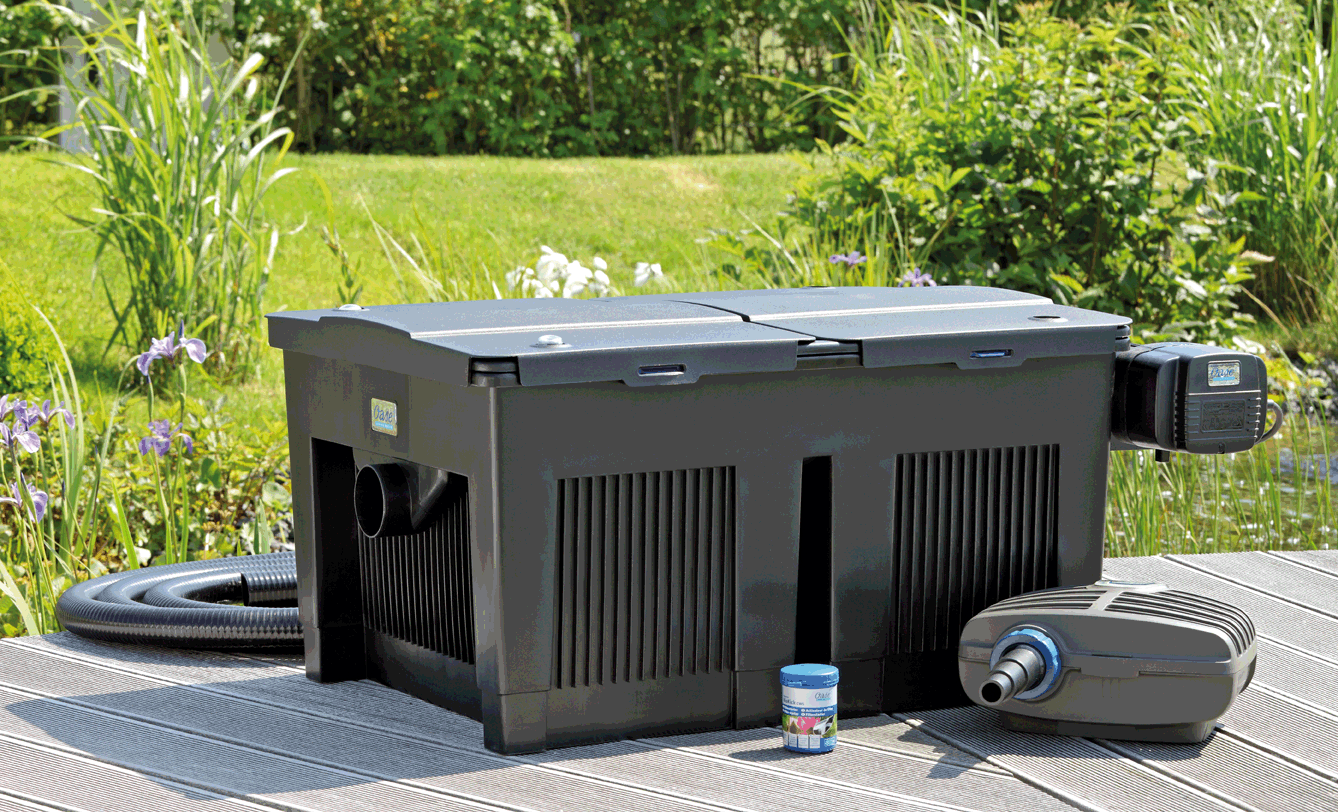

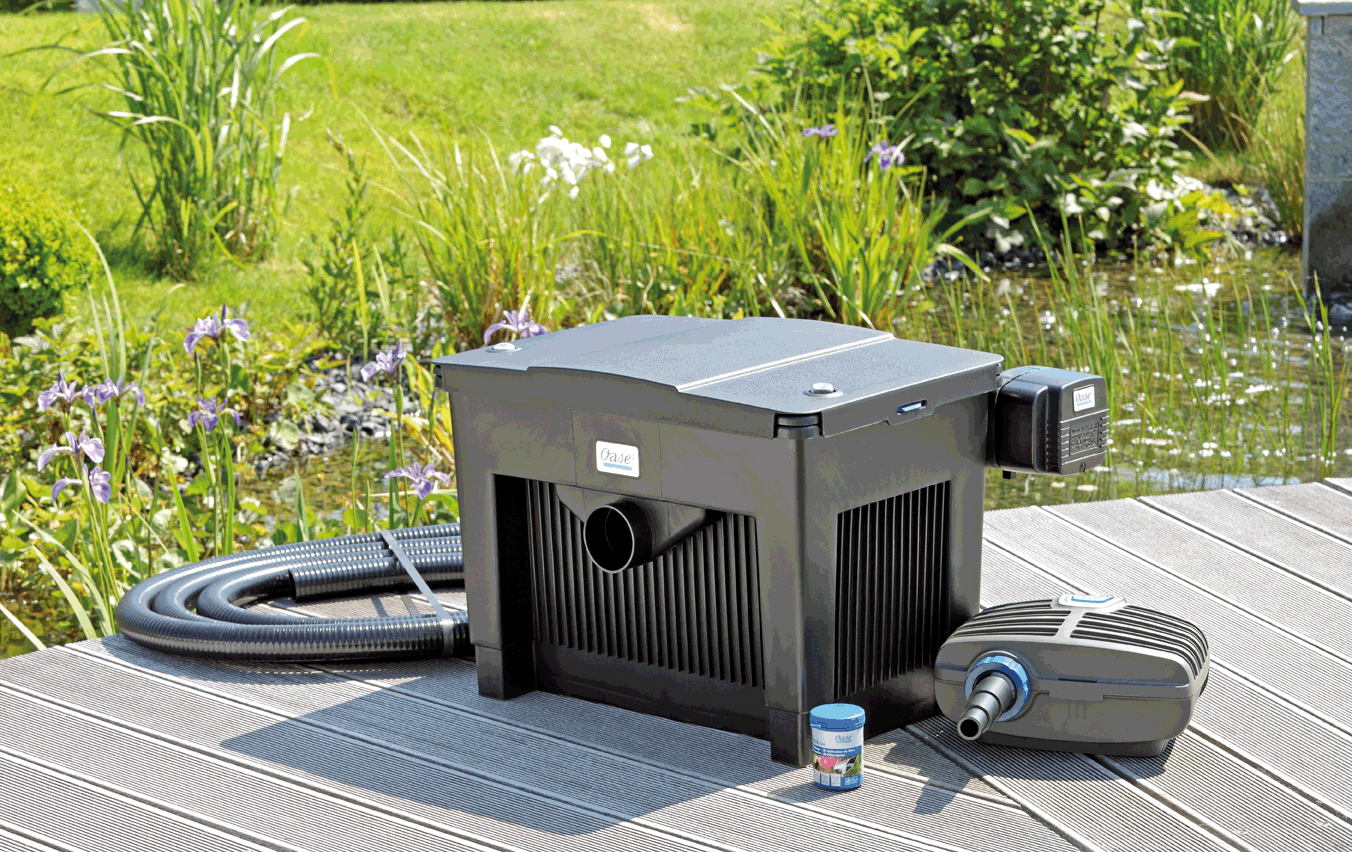

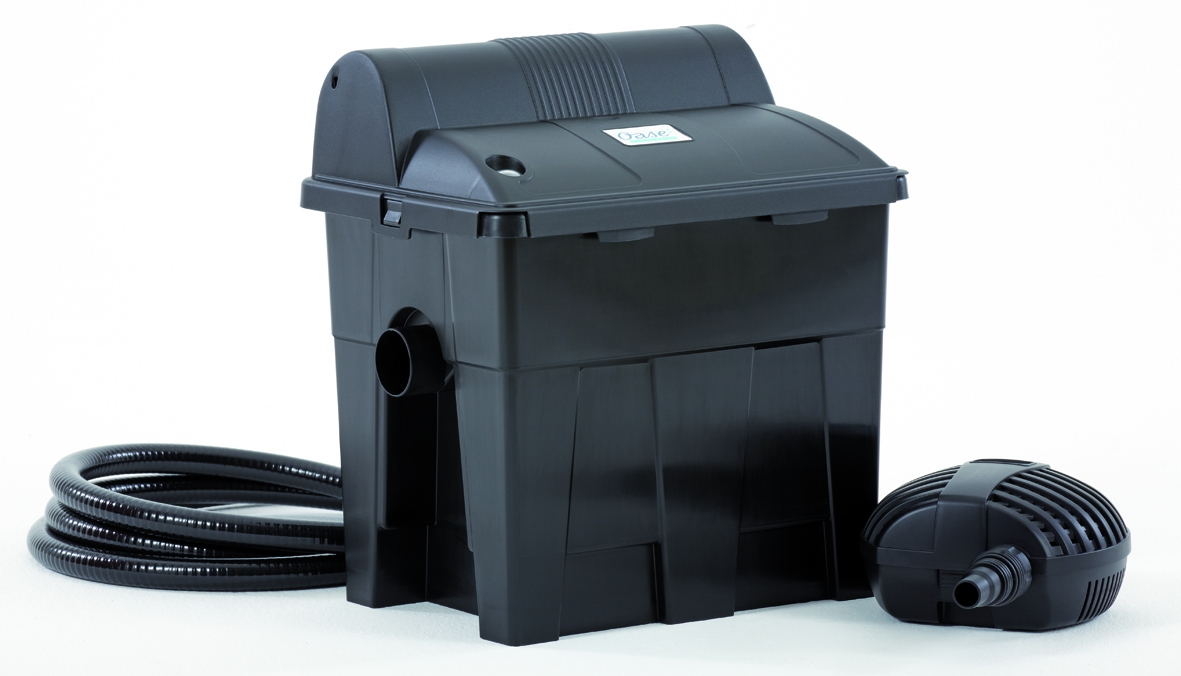

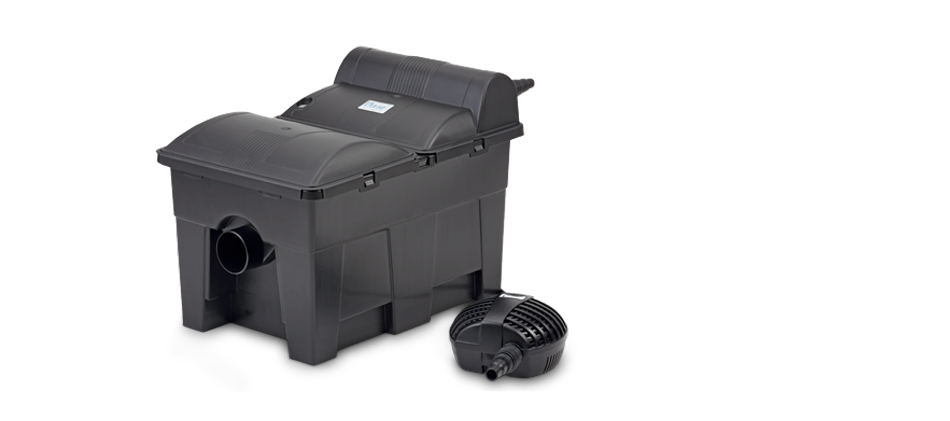

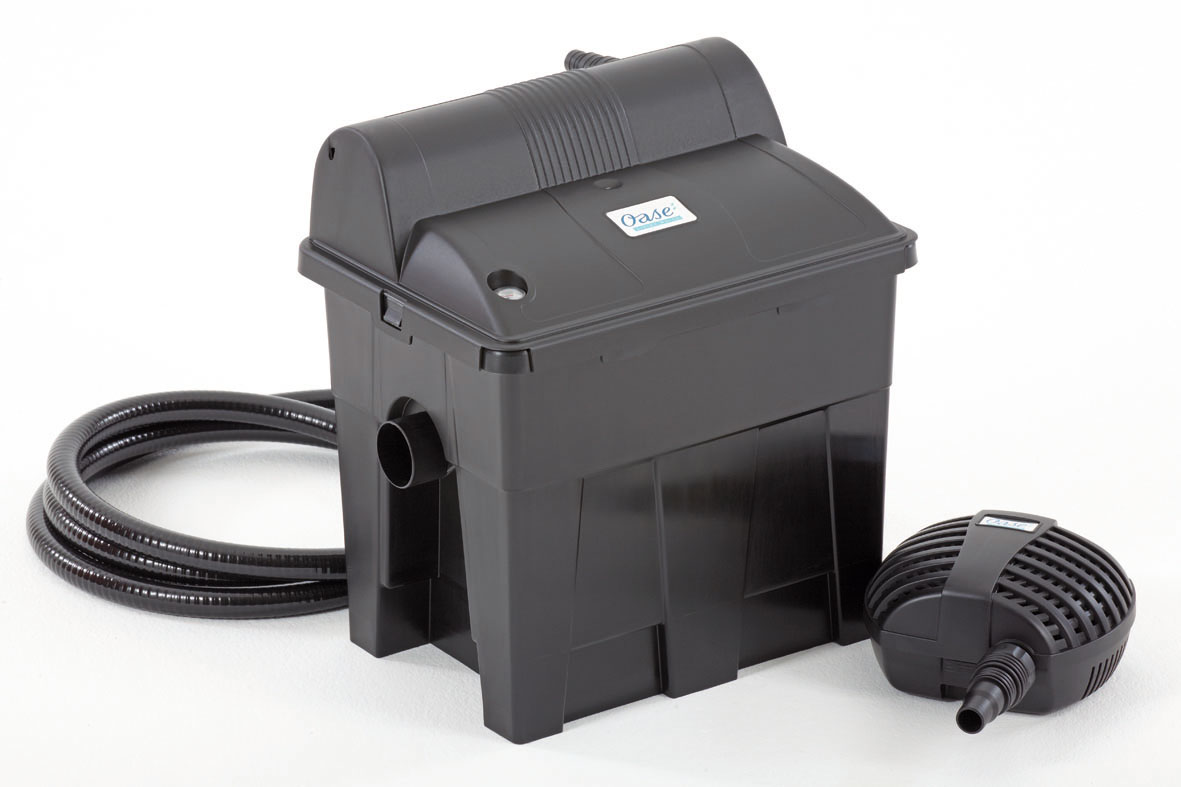

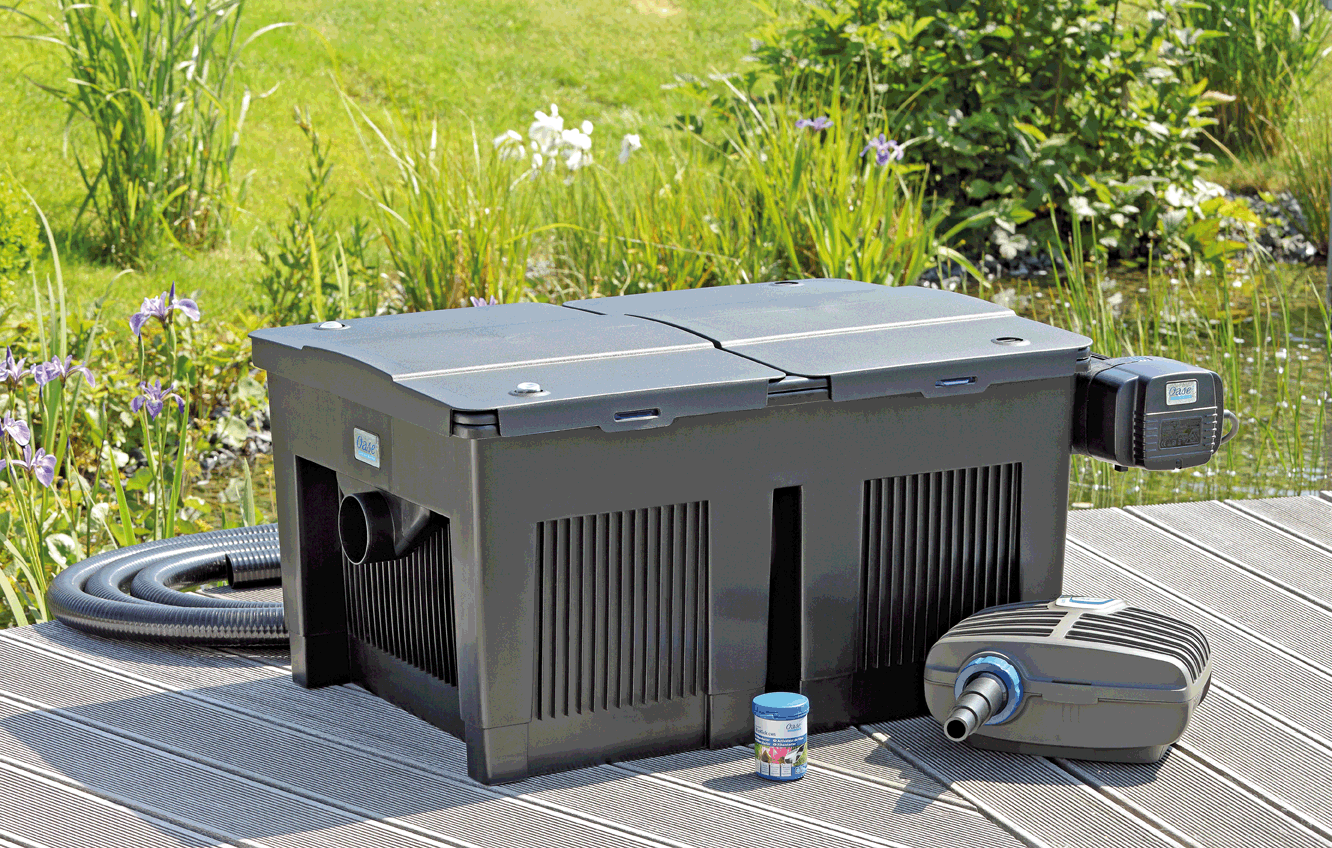

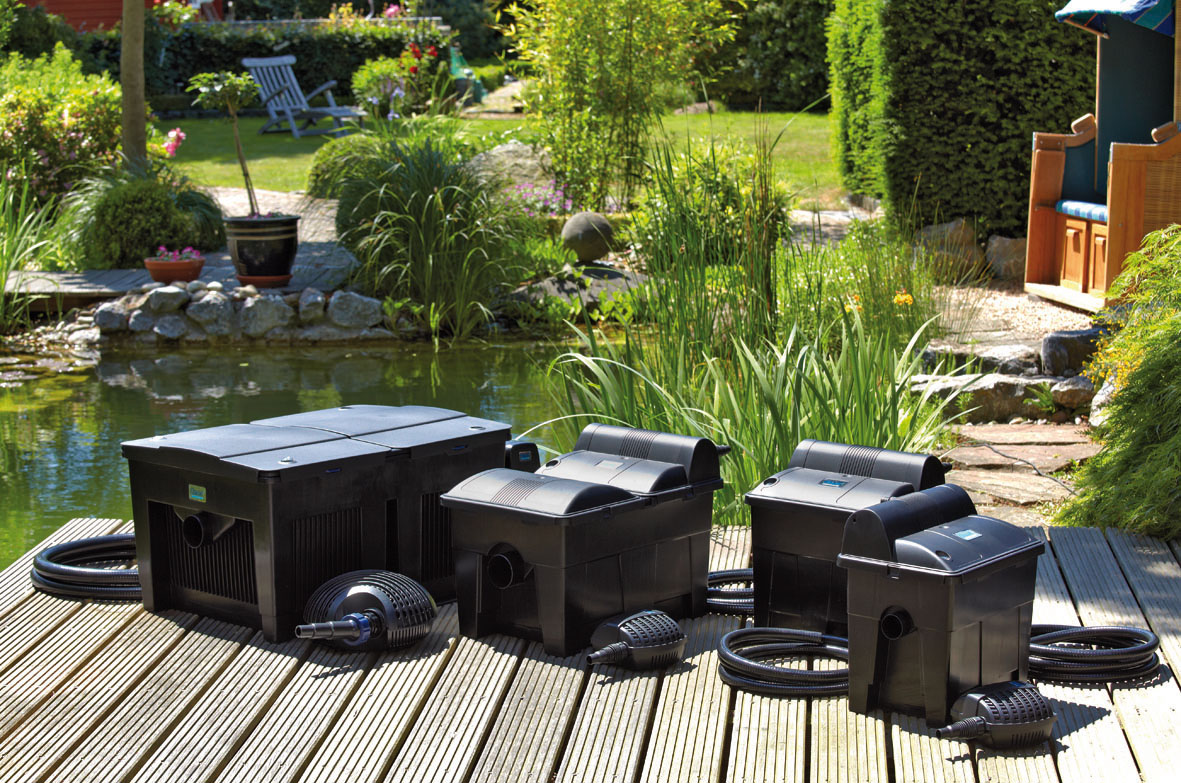

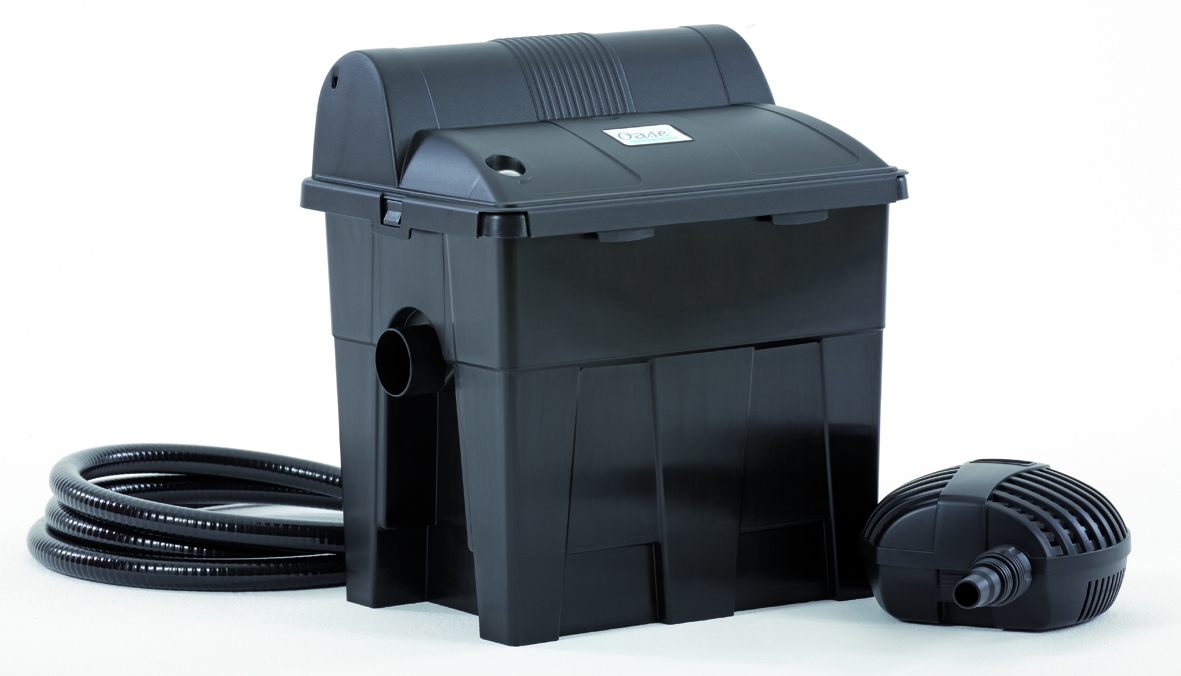

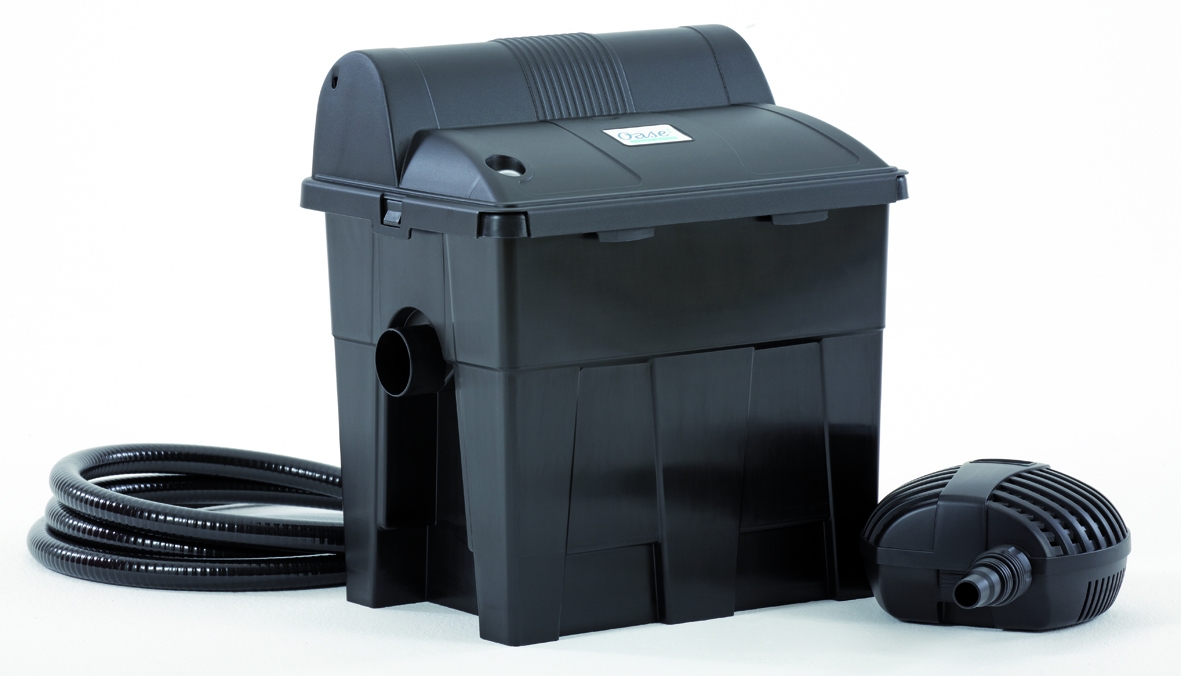

BioSmart Sets - Solid flow through filter sets with UVC and filter pump
- Suitable for ponds up to 36m3
- Combination of mechanical biological cleaning and effective UVC technology
- Incl. OASE Clear Water Guarantee
- Oxygen enrichment through
- Cleaning handles for convenient maintenance
- Including displays for pollutant level and water temperature
- Sludge drain for easy removal of coarse debris
- Easy to conceal: the filter can be recessed into the ground to 1/3 of its height
- Filters and pumps are optimally matched
- Incl. 100ml BioKick Filter Starter
| |
|
BioSmart Set 5000 |
BioSmart Set 7000 |
BioSmart Set 14000 |
BioSmart Set 18000 |
BioSmart Set 24000 |
BioSmart Set 36000 |
| Dimensions (LxWxh) |
mm |
280x380x410 |
280x380x410 |
380x560x410 |
559x596x408 |
920x555x405 |
920x600x405 |
| Rated voltage |
|
230Vx50Hz |
230Vx50Hz |
230Vx50Hz |
220-240V/50/60Hz |
220-240V/50/60Hz |
220-240V/50/60Hz |
| Power consumption (UVC) |
W |
11 |
12 |
14 |
18 |
24 |
36 |
| Power consumption pump |
W |
25 |
40 |
70 |
60 |
60 |
100 |
| Power cable length UVC |
m |
3 |
3 |
3 |
5 |
5 |
5 |
| Power cable length pump |
m |
10 |
10 |
10 |
10 |
10 |
10 |
| Net weight |
kg |
5.5 |
6.16 |
9.2 |
13.3 |
18.2 |
20 |
| UVC power |
w |
7 |
9 |
11 |
18 |
24 |
36 |
| Number of blue filter foams |
ea |
1 |
2 |
3 |
2 |
4 |
4 |
| Number of red filter foams |
ea |
1 |
2 |
3 |
2 |
4 |
4 |
| Number of green filter foams |
ea |
|
|
|
1 |
1 |
1 |
| Temperature display |
|
YES |
YES |
YES |
YES |
YES |
YES |
| Connections inlet |
|
¾",1",1¼",1½" |
¾",1",1¼",1½" |
1½",2" |
1½",2" |
1½",2" |
1½",2" |
| Connections outlet |
|
DN 50 |
DN 50 |
DN 75 |
DN 75 |
DN 75 |
DN 75 |
| Connections sludge discharge |
|
1½" |
1½" |
1½" |
DN 50 |
DN 50 |
DN 50 |
| Suitable for ponds up to max. |
m³ |
5 |
7 |
14 |
18 |
24 |
36 |
| Suitable for ponds with fish stock |
m³ |
2.5 |
3.5 |
7 |
9 |
12 |
18 |
| Suitable for ponds with koi |
m³ |
1.3 |
1.7 |
3.5 |
4.5 |
6 |
9 |
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
