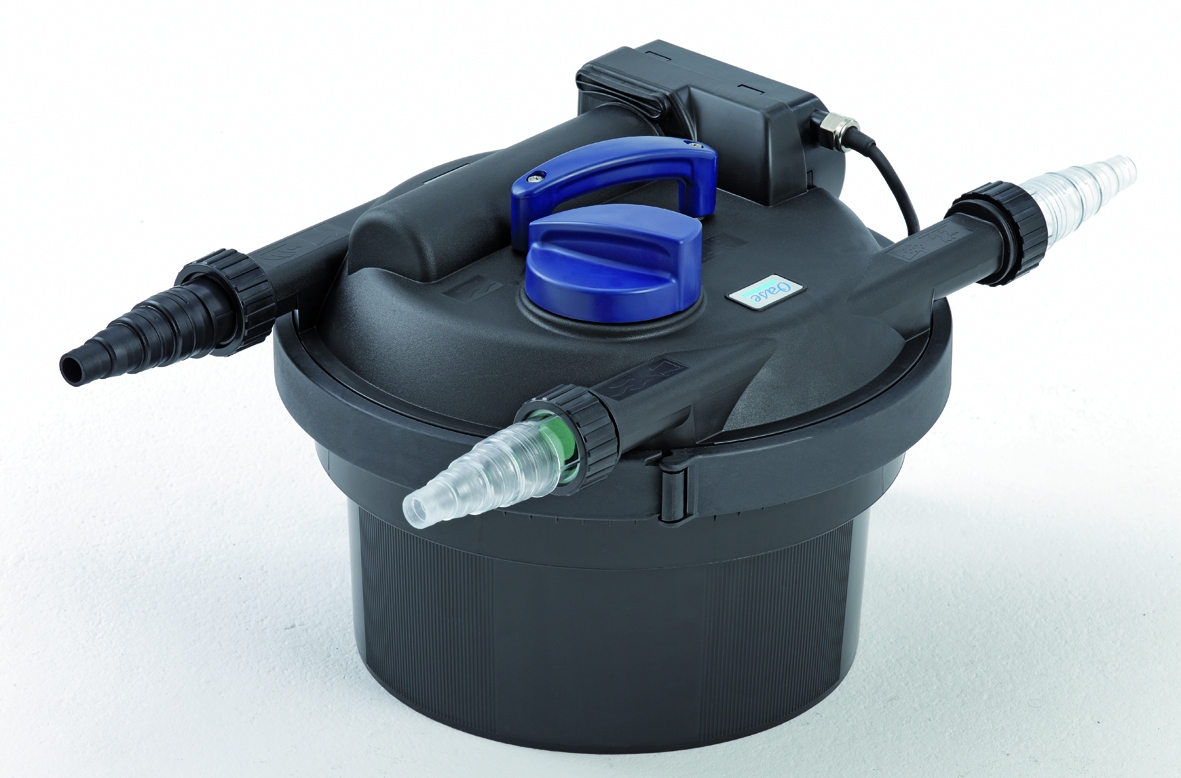

FitoClear 3000 |
FitoClear 6000 |
FitoClear 12000 |
FitoClear 16000 |
FitoClear 20000 |
FitoClear 30000 |
| Dimensions (Øxh) |
mm |
380x310 |
380x430 |
380x510 |
380x630 |
380x750 |
380x750 |
| Rated voltage |
|
230Vx50Hz |
230Vx50Hz |
220-240V/50/60Hz |
220-240V/50/60Hz |
220-240V/50/60Hz |
220-240V/50/60Hz |
| Power consumption |
w |
14 |
15 |
18 |
24 |
36 |
55 |
| Power cable length |
m |
5 |
5 |
5 |
5 |
5 |
5 |
| Net weight |
kg |
5.58 |
6.18 |
6.9 |
7.6 |
8.5 |
8.5 |
| UVC power |
w |
9 |
11 |
18 |
24 |
36 |
55 |
| Number of blue filter foams |
ea |
2 |
3 |
3 |
4 |
5 |
5 |
| Number of red filter foams |
ea |
1 |
3 |
2 |
3 |
4 |
4 |
| Pollutant level indicator |
|
YES |
YES |
YES |
YES |
YES |
YES |
| Temperature display |
|
NO |
NO |
NO |
NO |
NO |
NO |
| Connections inlet |
|
¾",1",1¼",1½" |
¾",1",1¼",1½" |
1½",2" |
1½",2" |
1½",2" |
1½",2" |
| Connections outlet |
|
¾",1",1¼",1½" |
¾",1",1¼",1½" |
1½",2" |
1½",2" |
1½",2" |
1½",2" |
| Connectionssludge discharge |
|
¾",1",1¼",1½" |
¾",1",1¼",1½" |
1½",2" |
1½",2" |
1½",2" |
1½",2" |
| Max. flow rate |
l/h |
4000 |
6000 |
8000 |
10000 |
12000 |
12000 |
| Max. operating pressure |
bar |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
| Suitable for ponds up to max. |
m³ |
3 |
6 |
12 |
16 |
20 |
30 |
| Suitable for ponds with fish stock |
m³ |
1.5 |
3 |
6 |
8 |
10 |
15 |
| Suitable for ponds with koi |
m³ |
|
1.5 |
3 |
4 |
5 |
7.5 |
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
