Description
The package includes the pump, 14 solar panels and accessories installation.

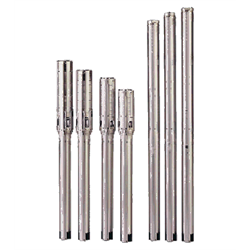

3 SQF pump \ "helical rotor is designed for high flow rates and low heights, solar power supply.
Features and benefits:
-protection against operation without water
-permanent magnetic motor with high efficiency (engine PM)
-surge protection and tensiuneminimÄ
-overload protection-
maximum power point tracking (MPPT Maximum PowerPoint Tracking)
-high voltage field
Pumped liquids: water
The maximum temperature of the liquid: 40 ° C
Temp. liquid: 20 ° C
Density: 998.2 kg/m³.
Maximum ambient pressure: 15 bar
Discharge pump: Rp 1 1/4
Drilling: minimum diameter of 76 mm.
Solar module 80 GF is a product type multi-crystalline.The solar module is equipped with plugs for easy connection of several modules. Solar modules must be mounted on a support structure, tilted at an angle to ensure the optimal use of solar energy.
Ambient temperature range:-40 ... ... 85 ° C
The point of maximum tension puter: 33.3 V
Open circuit voltage: 41.5 V
Maximum current at receptacle: 2.4
Short circuit current mode: 2.6
Maximum power output: 80 W
Crystalline solar module type.
