Description
ProfiClear Classic -Ideal for large ponds and swim ponds up to 200m3
- Modularly extensible filter system for individual adaptation to local condition
- Individual solutions through bringing togheter of different components
- Can be implemented in any size of pond and under any pond conditions

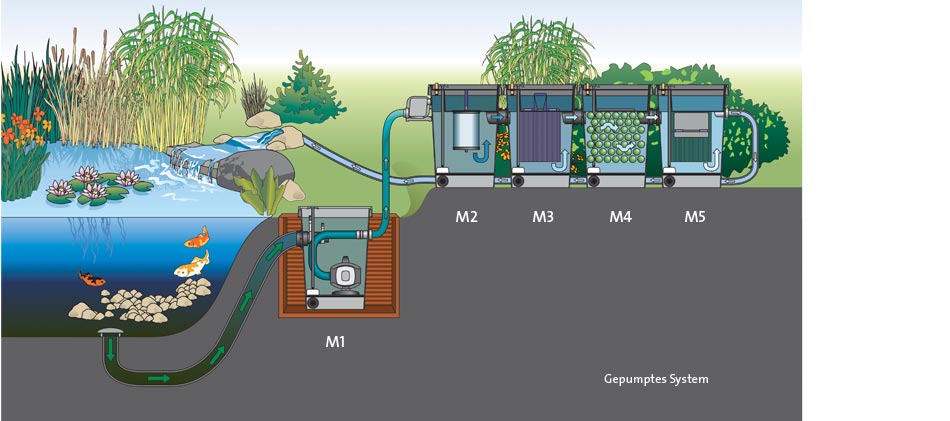

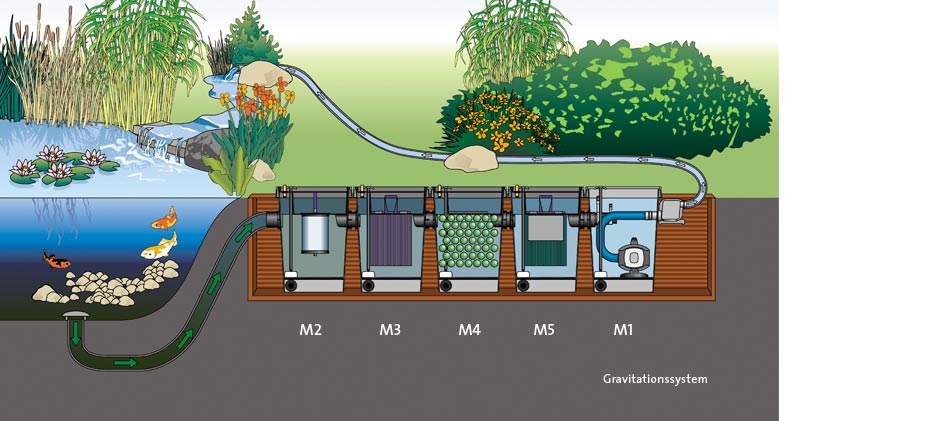

- Can be used as a pump fed version as well as a particularly energy saving gravity fed filter
- Coarse pollutant extraction with automatic cleaning (optional accessory)
- Easy maintenance cleaning handles and floor drains in each filter chamber
- High quality and impact resistant GRP and perfect workmanship
- Optimally matched to OASE filter pumps
- Protection against disproportionate algae growth when using the phosphate binder module

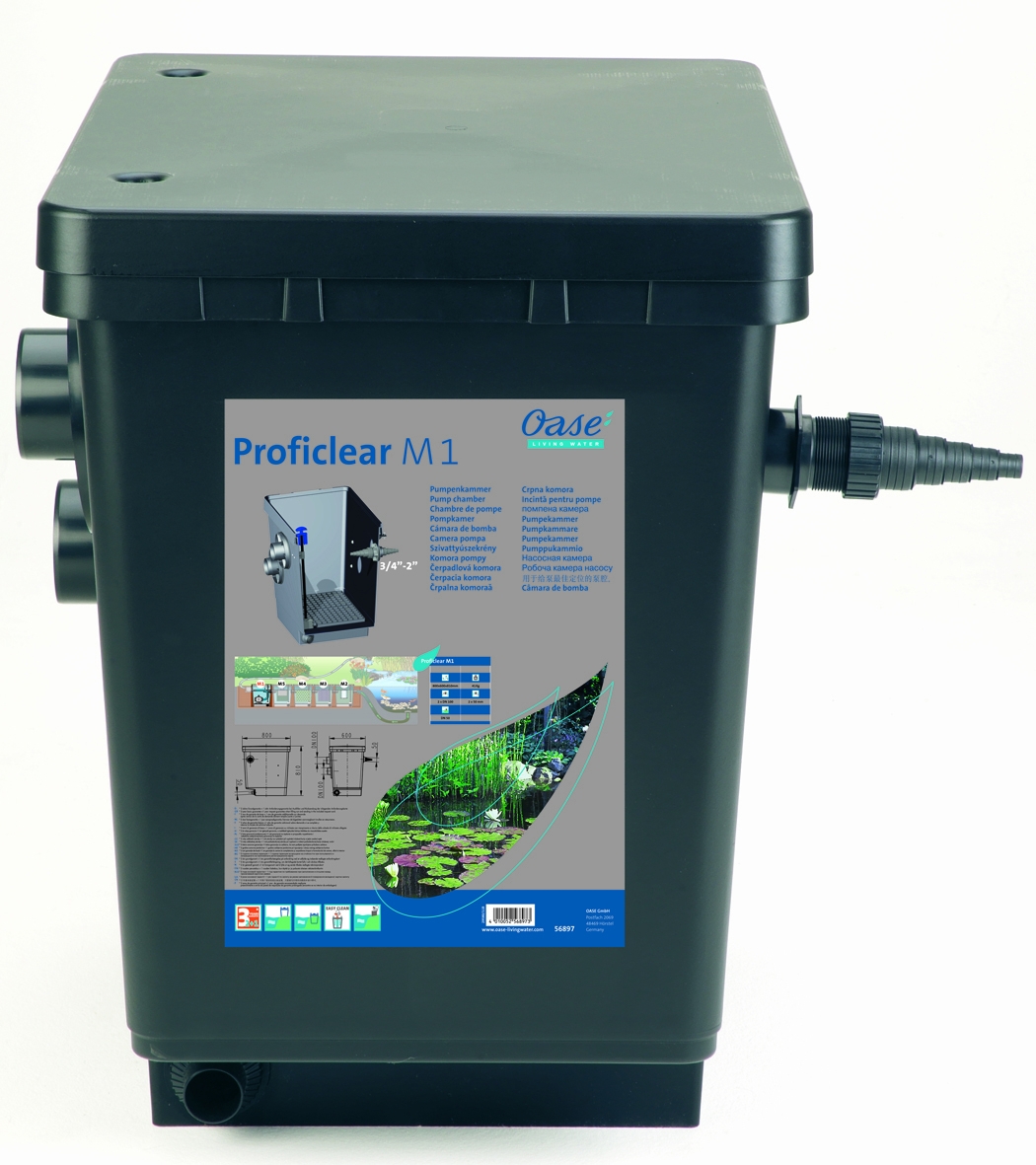

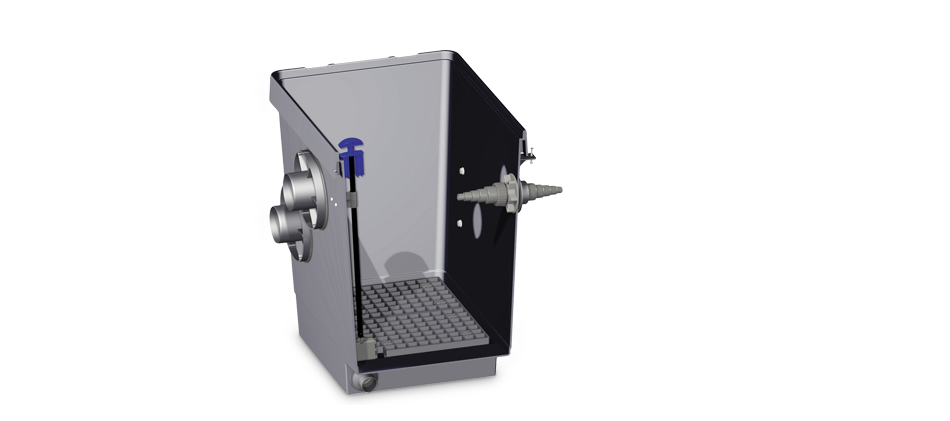

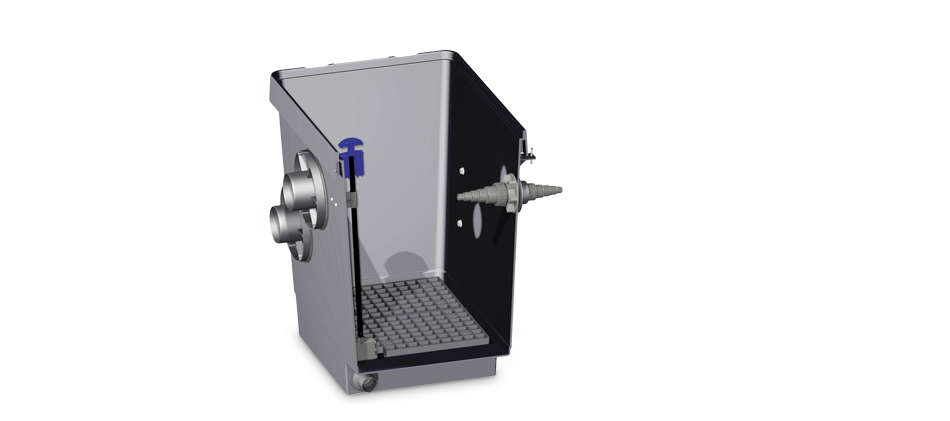

Pump chamber - whether gravity fed principle of pump fed system -the ProfiClear Classic pump chamber ensures optimal pump position
- Filters mechanically and biologically
- reduction of pressure losses
- Safe and standard conformant set up swim ponds
- Easy maintenanceand winter care
- Protection against excesive silt
- Two inlets incl.regulator for individual adjustement of the inflow
- Debris that accumulates in the sediment tank is flushed out via the bottom drain

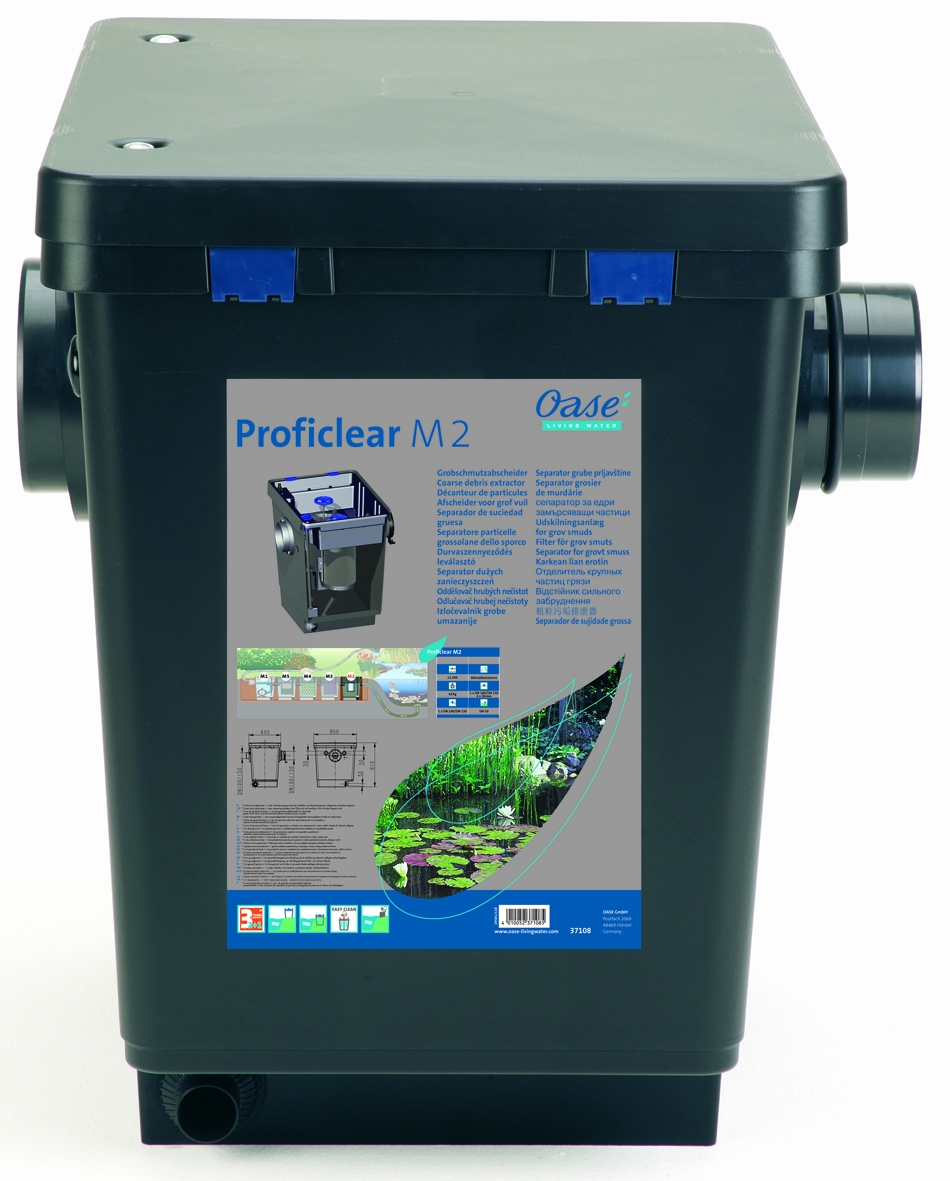

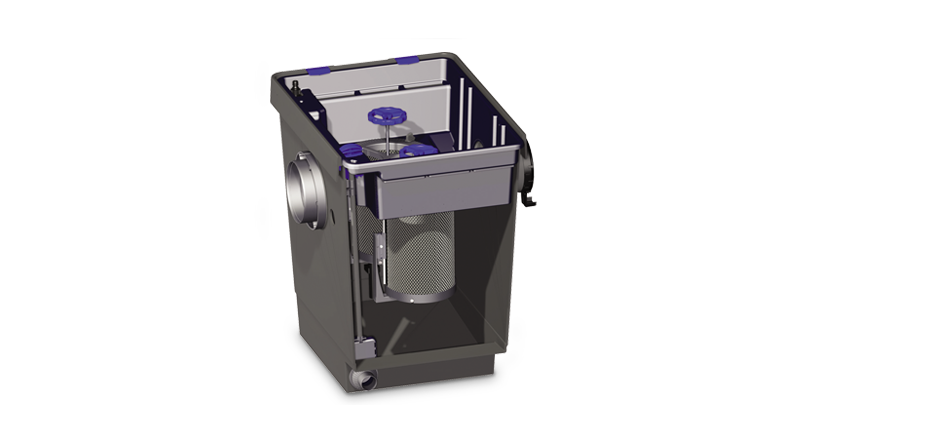

Coarse debris extractor - enables easy machanical extraction of solids up to 800|um in size
- Incoming water is fed via two large surface extraction sieves into the next filter chamber
- Pulling the slide valve flushes out the debris via a DN75 discharge
- Incl. hose coupling for fresh water rinsing
- the extraction sieves are quiccleaned by interior brushes by operating the cleaning handle
- A pollutant level indicator signals when maintenance is required
- Automatic and regular cleaning is possible via the ProfiClear Screendrive (optional accessory)

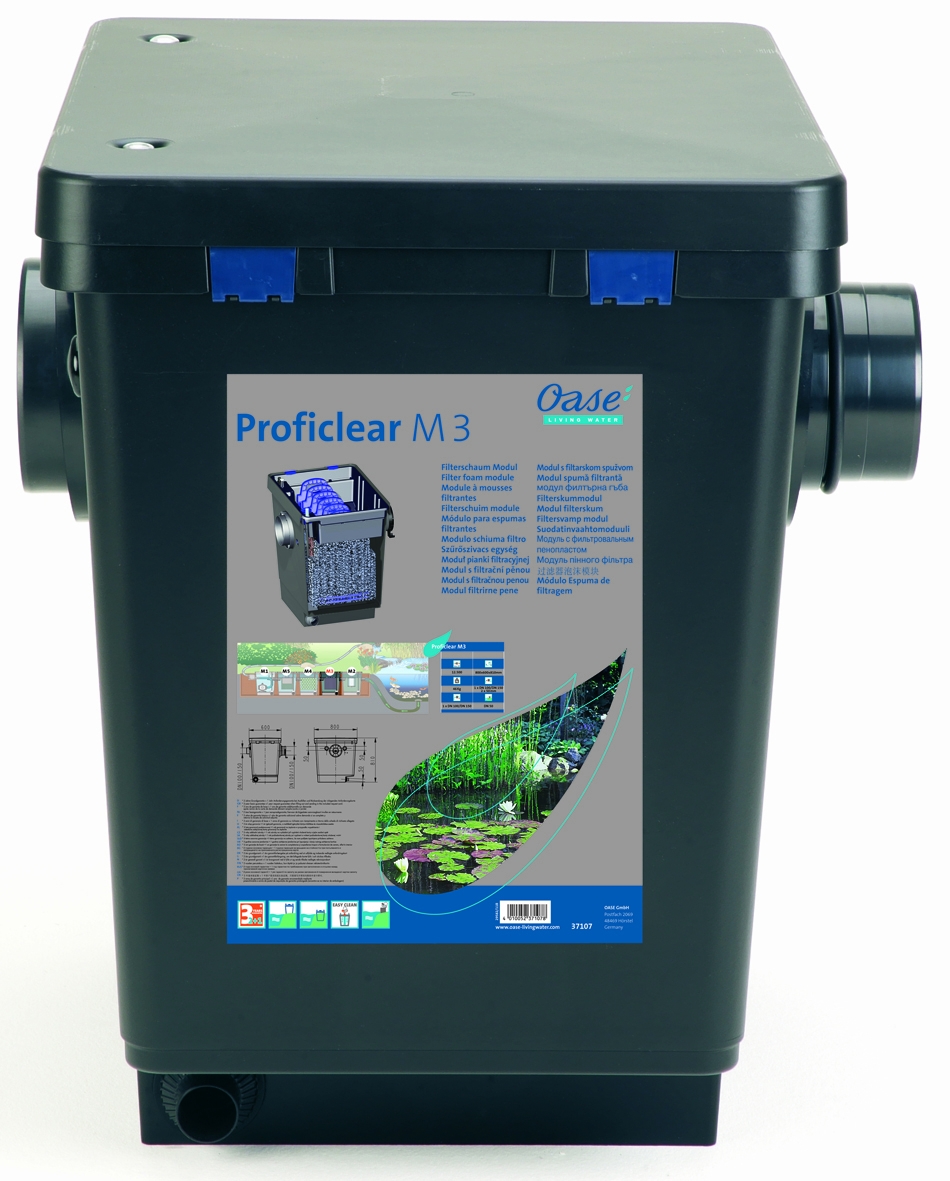

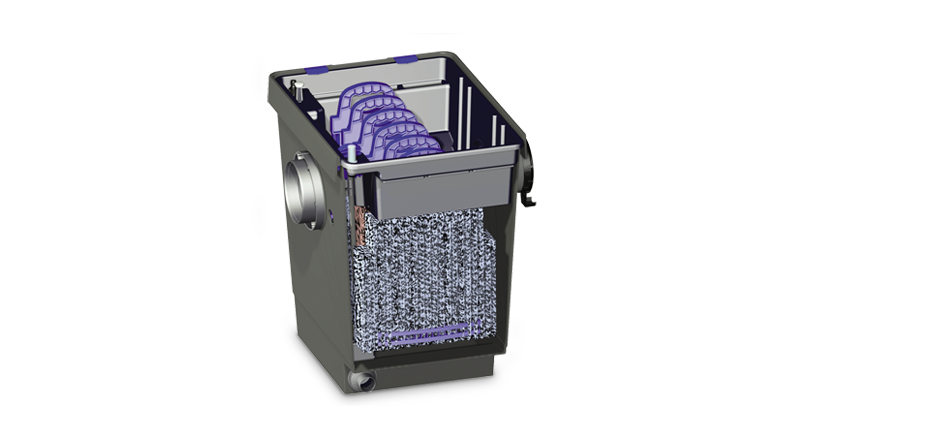

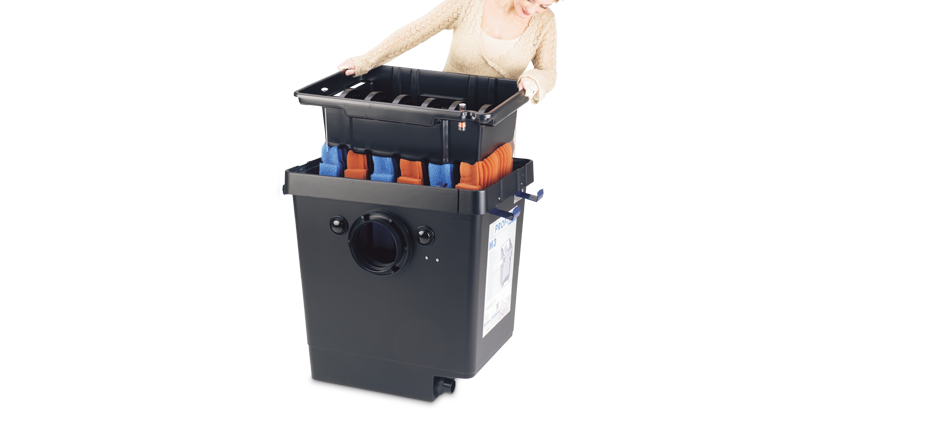

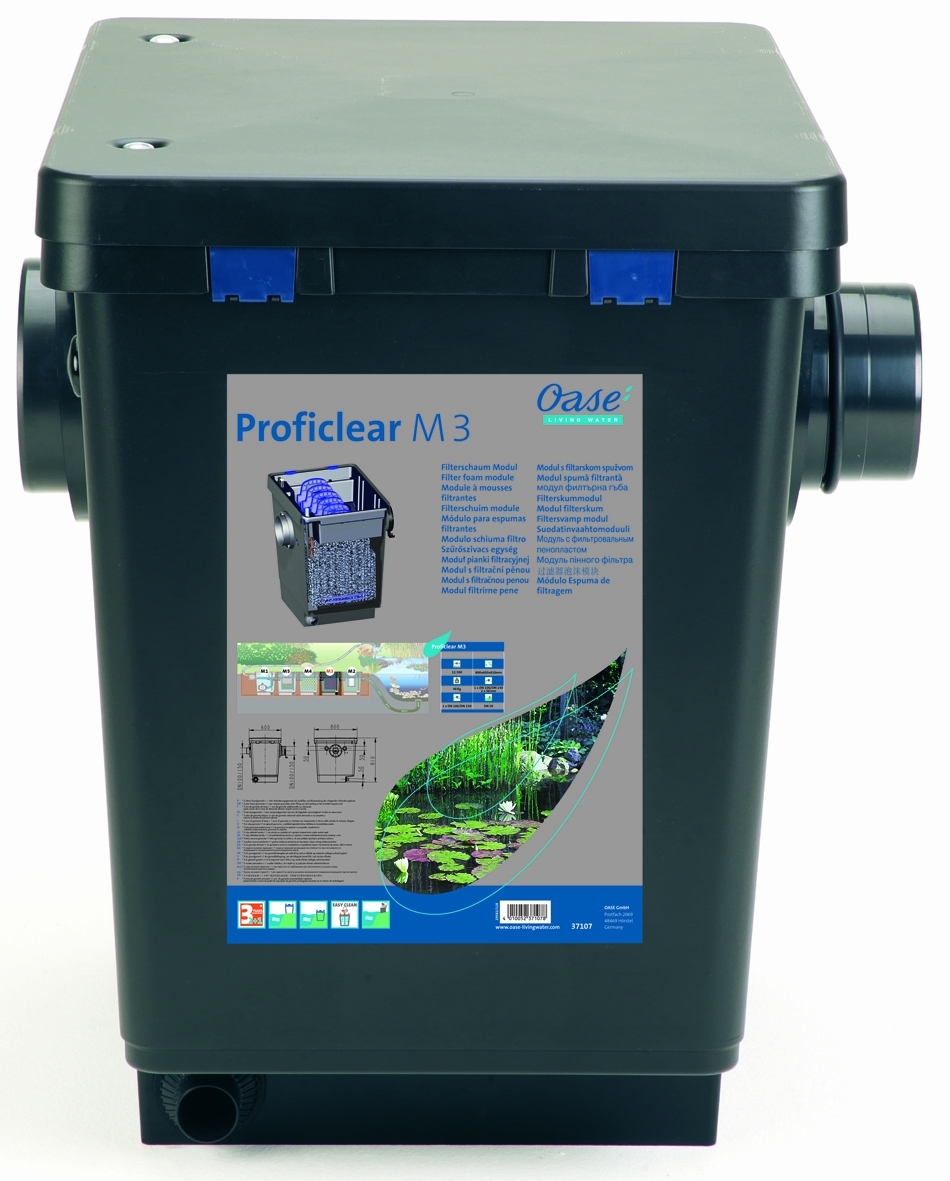

Filter foam module - reliably removes toxins such as ammonium/ammonia or nitrite
- The water to be filtered is channelled through the coarse and fine foams that contain the vital filter biology
- The oxygen necessary for the nitrification processes is supplied via connection on the housing

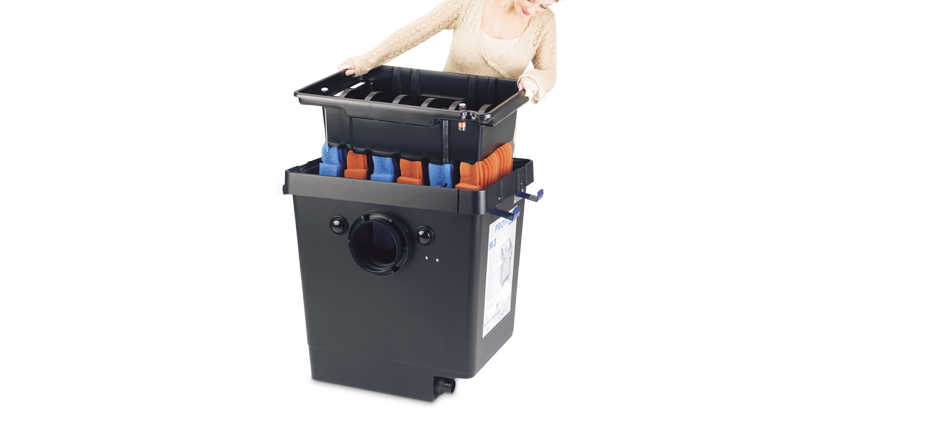

- The foams are cleaned by being compressed against the intermediate floors via the cleaning levers
- Pulling the slide valve flushes the debris out via a DN75 discharge which can be suported through rinsing cleaning nozzles
Phosphate binder module - converts nitrate into gaseous nitrogen and elimonates phosphates
- A majority of the water is channelles past the filter foam. This estabilishes the low oxygen milieu that is so important for the denitrifyng bacteria
- The lesser portion of the flow volume is channelled through the PhosLess inserts (4 units)
- Binders ensure quick and safe phosphate removal
- Elimination of these nutrients significantly restricts string algae growth
- Virtually maintenance free due to bypass regulation in the foam prevents clogging
- A pollutant level indicator signals when maintenance is required
- Pollutant discharge incl. slide valve
Tehnical data:
ProfiClear Classic
|
Pump chamber
|
Coarse debris extractor
|
Filter foam module
|
Phosphate binder module
|
Dimensions (Lxlxh)
|
mm
|
830x600x820
|
Net weight
|
kg
|
34.40
|
36.10
|
40.40
|
43.35
|
Coarse debris extraction
|
μm
|
-
|
800
|
-
|
-
|
Biological filter surface
|
m2
|
-
|
-
|
90.0
|
148.0
|
Special filter granulate
|
kg
|
-
|
-
|
-
|
4.00
|
Number of blue filter foams
|
ea
|
-
|
-
|
3
|
-
|
Number of red filter foams
|
ea
|
-
|
-
|
3
|
-
|
Number of black filter foams
|
ea
|
-
|
-
|
|
6
|
Temperature display
|
|
No
|
No
|
No
|
No
|
Inlets
|
|
2x DN110/DN150
|
1x DN110/DN150 +2x50mm
|
1xDN110/DN150 +2x50mm
|
Outlets
|
|
(1” – 2”) +1 xDN50
|
1xDN 110/DN150
|
Connections,sludge discharge
|
|
DN75
|
Max.flow rate
|
l/h
|
25000
|
12500
|
Rec. flow rate(pumped)
|
l/h
|
-
|
8000
|
Rec. flow rate (gravitation)
|
l/h
|
-
|
6000
|
Other
|
|
Pollutant discharge incl. slide valve
|
Pollutant discharge incl. slide valve
|
Pollutant discharge incl. slide valve
|
