Description
Easy commissioning

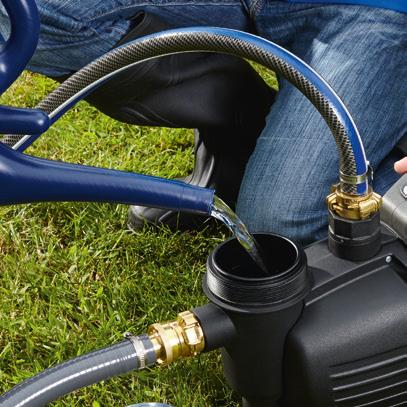

Fast and funnel-free filling through the pre-filter
Easy to see – easy to access
The blue toggle switch or flat pressure switch with 2 LEDs for the model 6000/5 attached at the top rear on the handle, is easy to reach from all sides and easy to see from all sides
Practical and well-designed
Integrated non-return valve with pull-out valve opener.
In three capacity levels with 3500, 5000 and 6000 litres per hour and pressure of up to 6 bar
Brass inserts for female threaded elements enable easy connection to off-the-shelf threaded material

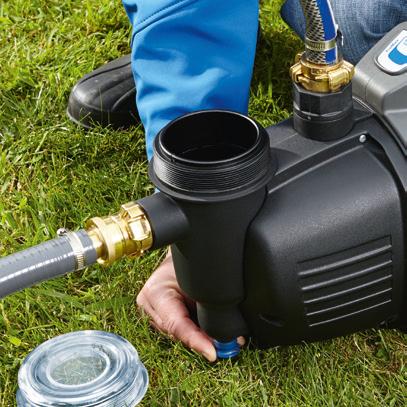

Integrated pre-filter for effective removal of sand and particles
With a stored selection program, at the touch of a button the pump changes to standby mode for operation with an external pressure switch
Stainless steel motor cladding for improved heat dissipation
4x slots for threaded fittings in the base allow variable mounting, e.g. on an existing installation carriage
Rubber feet and vibration dampers integrated in the base of the housing
Chrome-plated metal screw for easy opening with tools, without danger of breaking, even if the thread has “seized”
Flow-monitoring and thermal dry-run protection for the 6000/5
|
3500
|
5000
|
6000/5
|
Dimensions (L x W x H)
|
543 x 234 x 304mm
|
543 x 234 x 304mm
|
543 x 234 x 304mm
|
Rated voltage
|
230 V / 50 Hz
|
230 V / 50 Hz
|
230 V / 50 Hz
|
Power consumption
|
900W
|
1200W
|
1400W
|
Power cable length
|
1.5m
|
1.6m
|
1.5m
|
Net weight
|
11kg
|
13.80kg
|
14.3kg
|
Debit max.
|
3500 l/h
|
5000 l/h
|
6000l/h
|
Delivery head – H max.
|
40m
|
50m
|
60m
|
Suction line / pressure line
|
1" (33.3 mm)
|
1” (33.3 mm)
|
1” (33.3 mm)
|
Self-priming suction head – max.
|
8m
|
8m
|
8m
|
Pump mechanism
|
Jet
|
Jet
|
5-level
|
Automatic function
|
Nu
|
Nu
|
Nu
|
Sprinkler connection capacity / max. hose length per sprinkler* |
2x / 25m
2x / 50m
|
4x / 25m
4x / 50m
|
5x / 25m
5x / 50m
|
Pressure – max.
|
4 bar
|
5 bar
|
6bar
|
