Description
• For set-up in the most confined spaces
• For reliable water pumping even in shallow water
• 2 operating modes: automatic or permanent

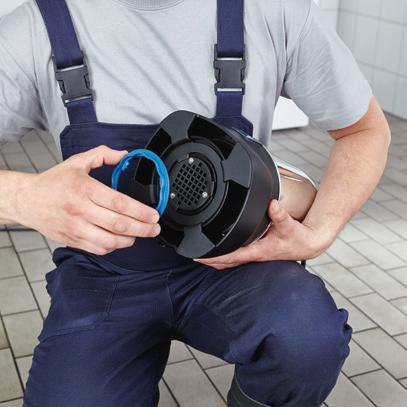

• Easy to clean
• With a solid cable

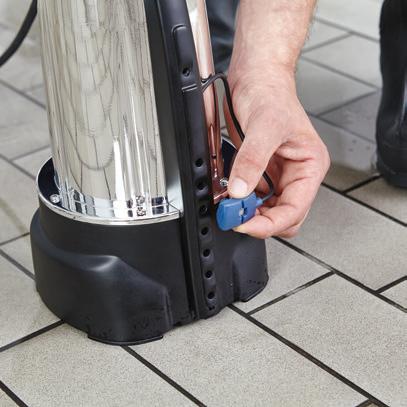

• Easy and reliable positioning of the float in different positions

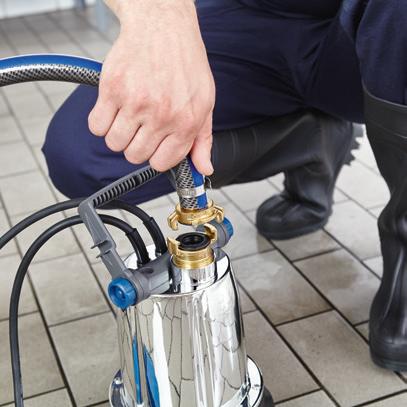

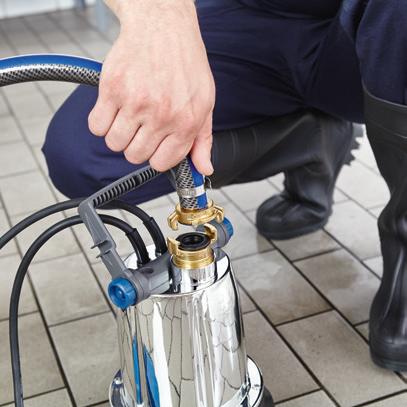

• Convenient mounting on the connection of the pressure port positioned on top, by flipping it up
• Handle can be unscrewed if pump is permanently installed
• Groove for rope fixation
•Optimal heat dissipation of the motor, even in shallow suction operation
Model
|
7000
|
11000
|
14000
|
Flow rate – Q max.
|
7000 l/h
|
11000 l/h
|
14000 l/h
|
Delivery head – H max.
|
7m
|
8m
|
12m
|
Pressure – max.
|
0.7 bar
|
0.8 bar
|
1.2 bar
|
Power consumption
|
400W
|
650W
|
1000W
|
Rated voltage
|
230 V / 50 Hz
|
230 V / 50 Hz
|
230 V / 50 Hz
|
Guarantee* G (+Request Guarantee)
|
2+1 ani
|
2+1 ani
|
2+1 ani
|
Immersion depth – max.
|
7m
|
7m
|
7m
|
Grain size – max.
|
5mm
|
5mm
|
5mm
|
Automatic function
|
Plutitor
|
Senzor
|
Senzor
|
Pump outlet
|
1 ¼" (41.9 mm)
|
1 ¼" (41.9 mm)
|
1 ¼" (41.9 mm)
|
Power cable length
|
10m
|
10m
|
10m
|
Net weight
|
4.7kg
|
6.5kg
|
7.7kg
|
Dimensions (L x W x H)
|
193 x 197 x 352mm
|
193 x 197 x393mm
|
193 x 197 x 393mm
|
