AquaMax Expert

AquaMax

Expert

20000

AquaMax

Expert

30000

AquaMax

Expert

40000

Dimensions (Lxlxh)

mm

420 x 240 x 262

461 x 258 x 293

Rated voltage

220 – 240 V/50 Hz

Power consumption

W

450

650

1100

Power cable length

m

10.00

Net weight

kg

13.88

13.76

19.18

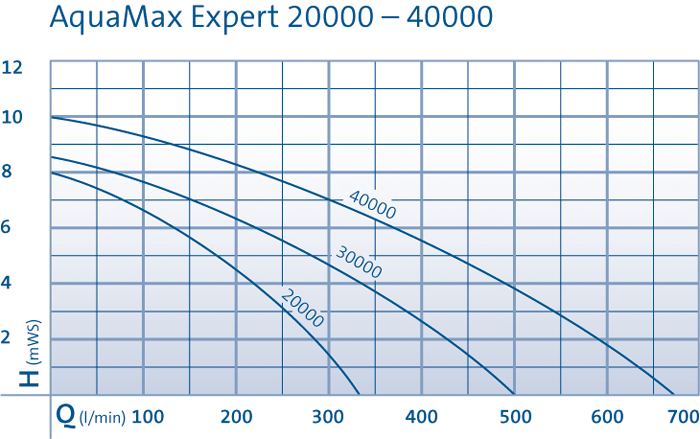

Max. flow rate

l/min

333

500

683

Max. flow rate

l/h

20000

30000

41000

Max head height

m

8.00

8.50

10.00

Connection pressure-side

2”

Connection suctions-side

2”

2½”

Connection for hoses

1”,1½”, 2”

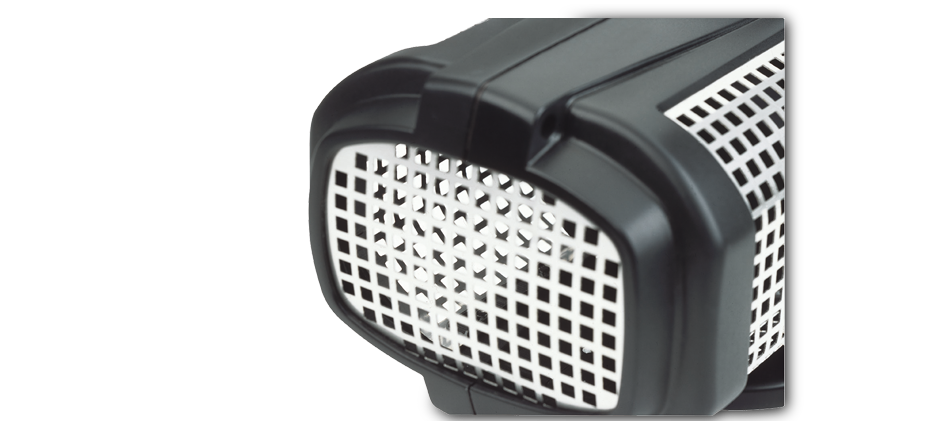

Filter intake surface

cm²

1320

1620

Coarse debris displacement max.

mm

8

Electronic adjustement

YES

Setup type

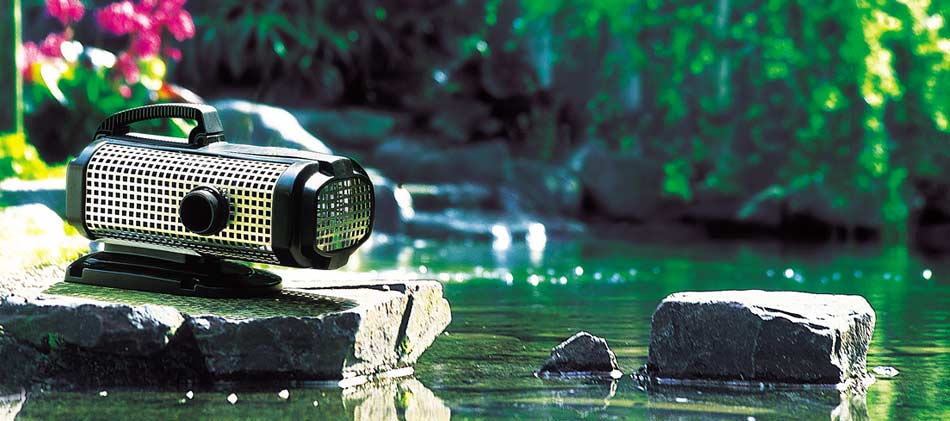

Can be setup underwater & dry
