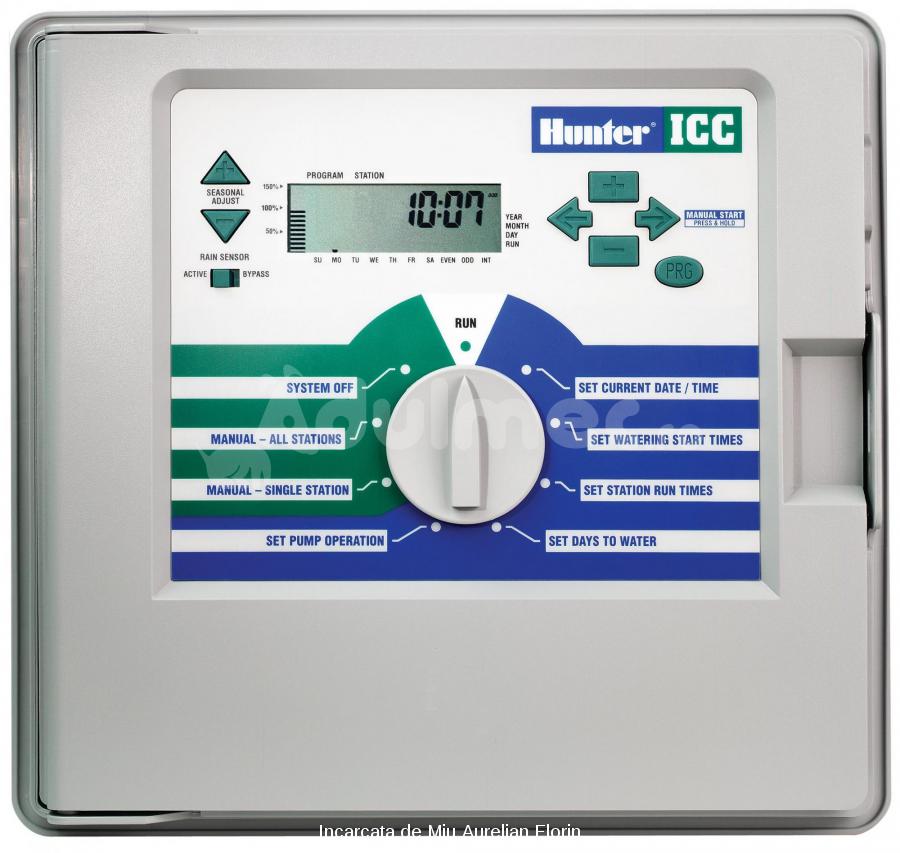

8-station controller, plastic cabinet, 32-station capacity

Description

SPECIFICATIONS AND FEATURES :

• Transformer input : 120/240 VAC, 50/60Hz
• Transformer output : 24VAC, 1.5A
• Station output : 24VAC, 0.56A (2 valves)
• Maximum total output : 24VAC, 1.4A (5 valves), includes master valve circuit
• Master valve output : 24VAC, 0.28A
• Rain sensor override compatible with most brands utilizing a normally closed micro switch
• Seasonal adjustment : 10 to 150%
• Program "D" can run simultaneously with program A, B or C for drip
• Self-diagnostic circuit breaker : skips shorted stations and continues watering, no uses to replace
• Station run times : Programs A, B and C, 2 hours; Program D, 12 hours
• Programmable delay between stations up to 10 hours
• Programmable rain delay up to 7 days
• 365 day calendar
• Hunter Quick Check helps troubleshoot field wiring problems
• Test program feature allows for quick systems checks
• Central control compatible with Hunter IMMS system
• Compatible with Hunter's ROAM and ICR remote control systems
• All models NEMA rated for weather resistance
• One button manual start and advance
• Cycle and Soak capability by station

DIMENSIONS :

• Plastic cabinet : 25.7cm H x 33.7cm W x 12.1cm D
